Item

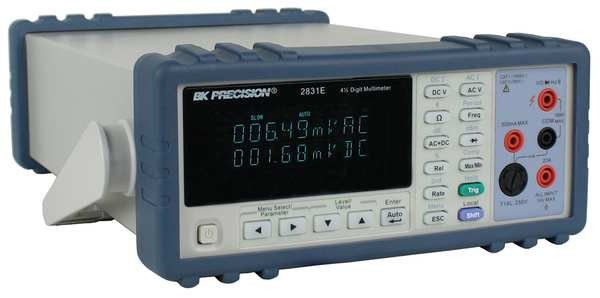

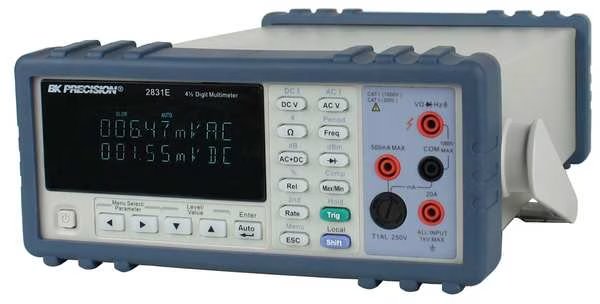

Digital Bench Multimeter
Voltage (AC)
200mV to 750V
Voltage (DC)
200mV to 1000V
Resistance (Ohms)
200 ohm to 20 megaohm
Basic DC Accuracy
+/-0.03%
Manufacturers Warranty Length
1yr
Display
Dual Vacuum Fluorescent
Safety Rating
CAT I 1000V, CAT II 300V
Special Features
Free Application Software via Bu0026K Precision website, PC Connectivity, SCPI Compatible
Measurement Functions
ACA, ACV, Continuity, dB and Percent, dBm, DCA, DCV, Diode, Frequency, Max/Min, Rel
Advanced Measurements
Limit Operation for Pass/Fail Testing
Includes
Power Cord, Spare Fuse, Test Leads
Calibration Certificate
NIST
AC Voltage Measurement - Maximum
750 V
Resistance Measurement - Maximum
20 megaohm
Frequency Measurement Accuracy
0.05%+0.02% to 0.01%+0.008%
AC Current Measurement - Maximum
20 mA
Basic AC Current Accuracy
+/-23 Degrees C, +/-5 Degrees C
Frequency Measurement - Maximum
1 MHz
Frequency Measurement - Minimum
10 Hz
Basic DC Current Accuracy
0.08% +0.025% to 0.3% +0.025%
Digital Display Screen Type
Vacuum Fluorescent
DC Voltage Measurement - Maximum
1,000 V
DC Current Measurement - Minimum
2 mA
Calibration Certificate Type
NIST
Resistance Measurement Resolution
10 milliohm
DC Voltage Measurement - Minimum
200 V
Parameters Measured
AC Current, AC Voltage, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
Basic DC Voltage Accuracy
0.02%
CAT Safety Rating
CAT I 1000V, CAT II 300V
Resistance Measurement - Minimum
200 ohm
Basic AC Voltage Accuracy
0.5% +0.15% (50 to 20 kHz), 1.0% +0.2% (20 to 50 Hz), 1.8% +0.25% ( 20 to 50 kHz), 3.0% +0.75% (50 to 100 kHz)
DC Current Measurement Resolution
0.1 uA
AC Magnitude Calculation
True RMS
AC Current Measurement Resolution
10,000 uA
Resistance Measurement Accuracy
0.3% +0.05% (2) to 0.3% +0.05%
AC Voltage Measurement - Minimum
200 mV
DC Current Measurement - Maximum
20 A
AC Current Measurement - Minimum
2 mA
Frequency Measurement Resolution
10 Hz
Country of Origin (subject to change)
China
