Item

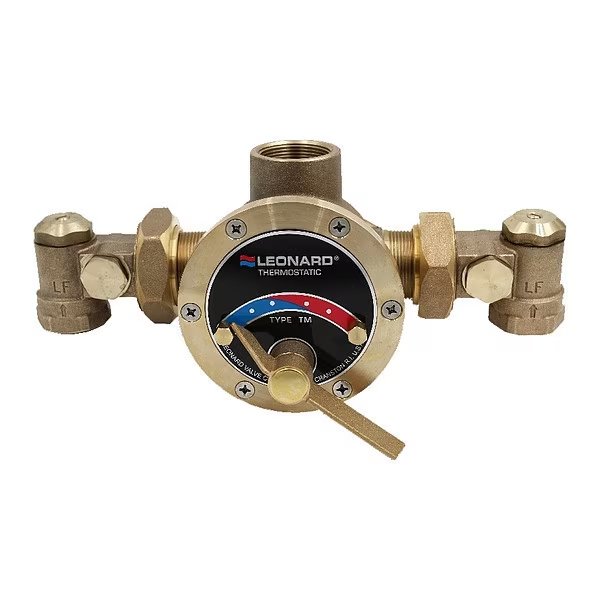

Thermostatic Mixing Valve
Temp. Range
42 Degrees to 200 Degrees F
For Use With
Low Temperature and Industrial Application
Connection Size - Outlet
1 1/2 in
Connection Size - Inlet
1 1/4 in
Operating Temperature - Minimum Outlet
65 Degrees F
Inlet Connection Size - Cold
1 1/4 in
Includes Temperature Gauge
Temperature Gauge Not Included
Inlet Connection Size - Hot
1 1/4 in
Coefficient of Volume (Cv)
Not Applicable
Operating Pressure - Maximum
125 psi
Inlet Temperature - Maximum Hot
200 Degrees F
Operating Pressure - Minimum
30 psi
Outlet Connection Size
1 1/2 in
Inlet Temperature - Minimum Hot
120 Degrees F
Inlet Temperature - Minimum Cold
40 Degrees F
Inlet Temperature - Maximum Cold
70 Degrees F
Outlet Connection Type
NPT
Operating Temperature - Maximum Outlet
180 Degrees F
Country of Origin (subject to change)
United States
