| Item | Compressor/Vacuum Pump |
| Compressor Type | Diaphragm |
| HP | 1/8 hp |
| Voltage | 115V AC |
| Full Load Amps | 4.5 |
| Max. Vacuum | 25.5 in Hg |
| Max. PSI Cont./Int. | 60/60 |
| Inlet Size | 3/8 in |
| Outlet Size | 3/8 in |
| Free Air CFM @ 0 PSI | 1.9 |
| Overall Height | 8 in |
| Free Air CFM @ 20 Vacuum | 0.3 |
| Hz | 60 |
| Overall Length | 7.62 in |
| Overall Width | 5.12 in |
| Standards | CE Listed, CSA, cUR(l) |
| Weight | 14.5 lb |
| Frequency | 60 Hz |
| Pump Type | Diaphragm |
| Maximum Continuous Pressure | 60 psi |
| Max. Pressure Cont/Int | 60 psi / 60 psi |
| Outlet Size and Type | 3/8 in NPT |
| Maximum Intermittent Pressure | 60 psi |
| Output Power | 1/8 hp |
| Maximum Operating Temperature | 104 Degrees F |
| Maximum Vacuum | 25.5 in Hg |
| Inlet Connection Type | NPT |
| Inlet Size and Type | 3/8 in NPT |
| Outlet Connection Type | NPT |
| Flow Rate @ 0 psi | 1.9 cfm |
| Current Rating | 4.2 A |
| Maximum Speed | 1,575 RPM |
| Minimum Operating Temperature | 41 Degrees F |
| Maximum Flow Rate | 1.9 cfm @ 0 psi |
| Maximum Flow Rate @ Pressure | 1.9 cfm @ 0 psi |
| Sound Level | 70 dBA |
| Outlet Connection Type | NPT |
| Inlet Connection Type | NPT |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

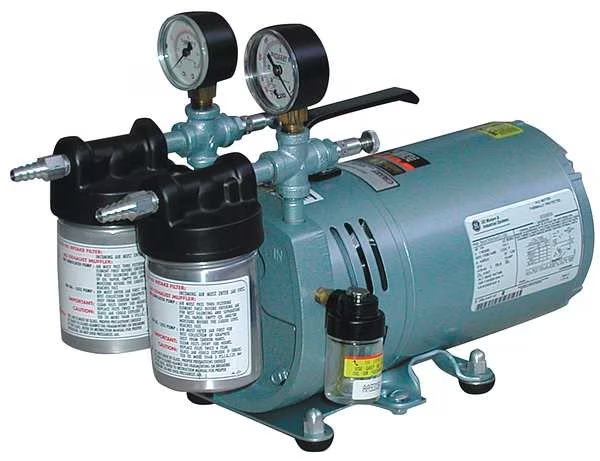

Compressor/Vacuum Pump, 1/8 hp, 115V AC, 25.5 in H Max Vacuum, 60 psi Max Continuous Pressure, GAST, Mfr# DOA-P704-AA
$1008,99
-$5.05 / ea
with subscription
Free shipping will be applied on orders over $50
Compressor/Vacuum Pump, Output Power 1/8 hp, Voltage 115V AC, Maximum Vacuum 25.5 in Hg, Maximum Continuous Pressure 60 psi, Maximum Intermittent Pressure 60 psi, Maximum Flow Rate 1.9 cfm @ 0 psi, Inlet Size 3/8 in, Inlet Connection Type NPT, Outlet Size 3/8 in, Outlet Connection Type NPT, Compressor Type Diaphragm, Current Rating 4.2 A
9999 in stock
Must order in multiples of 1
Subtotal:
$1008.99
