| Item | Condensate Removal Pump |
| Amps | 1.9 A |
| Cord Length | 14 ft |
| Standards | CSA/UL |
| Pump Type | Plenum Rated, Standard |
| Maximum Flow Rate @ 10 Feet of Head | 5.3 gpm |
| Series | HT-VCL-30-P |
| Discharge Connection | 3/8 in Barbed |
| Nameplate Voltage | 115V AC |
| Pump Housing Material | Polypropylene |
| Series Family | HT-VCL |
| Overall Height | 10.2 in |
| Shut Off Level | 1.4 in |
| Compatible Discharge Pipe Size | 3/8 in |
| Maximum Operating Pressure | 13.9 psi |
| Discharge Connection Style | Barbed |
| Maximum Flow Rate @ 50 Feet of Head | [DELETE] |
| Compatible Intake Pipe Size | 1 1/16 in |
| Maximum Flow Rate @ 15 Feet of Head | 4.6 gpm |
| Overall Width | 6 in |
| Maximum Flow Rate @ 30 Feet of Head | 0 gpm |
| Maximum Flow Rate @ 1 Feet of Head | 6 gpm |
| Maximum Flow Rate @ 5 Feet of Head | 5.8 gpm |
| Overall Length | 12 in |
| Tank Capacity | 1 gal |
| Maximum Flow Rate @ 20 Feet of Head | 3.8 gpm |
| Plenum Rated | Yes |
| Frequency | 60 Hz |
| Maximum Media Temperature | 212 Degrees F |
| Maximum Flow Rate @ 25 Feet of Head | 2.7 gpm |
| Turn On Level | 3.4 in |
| Maximum Feet of Head | 30 ft |
| Manufacturer Warranty Length | 2 yr |
| Intake Connection | 1 1/16 in Open |
| Horsepower | 1/8 hp |
| Intake Connection Style | Open |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

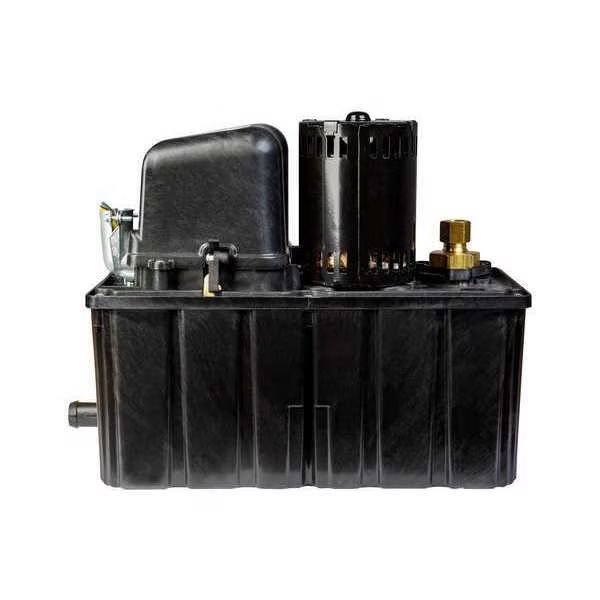

Condensate Pump, 1 gal, 1/8 hp, 115V AC, LITTLE GIANT PUMP, Mfr# 553130101
$376,99
-$376.99 / ea
with subscription
Free shipping will be applied on orders over $50
Condensate Removal Pump, Discharge Connection Style Barbed, Horsepower 1/8 hp, Intake Connection Style Open, Maximum Feet of Head 30 ft, Maximum Flow Rate @ 10 Feet of Head 5.3 gpm, Maximum Flow Rate @ 15 Feet of Head 4.6 gpm, Maximum Flow Rate @ 1 Foot of Head 6 gpm, Maximum Flow Rate @ 20 Feet of Head 3.8 gpm, Maximum Media Temperature 212 Degrees F, Nameplate Voltage 115V AC, Plenum Rated Yes, Pump Type Plenum Rated, Standard, Series HT-VCL-30-P, Series Family HT-VCL, Shut Off Level 1.4 in
