| Property | Value |
|---|---|
| Item | Condensate Removal Pump |
| Condensate Pumps - Type | Condensate |
| Reservoir Size - Pumps | Large |
| Voltage | 120 |
| HP - Pumps | 1/50 hp |
| Voltage - Pumps | 120V AC |
| Reservoir Capacity - Pumps | 1 gal |
| Discharge Size - Pumps | 3/8 in Barb |
| Max. Temp - Pumps | 110 Degrees F |
| Shut-Off | 14 ft. |
| Reservoir Capacity | 1 gal. |
| Watts | 78 W |
| Float Material | Polypropylene |
| Max. Temp. | 110 Degrees F |
| GPH of Water @ 1 Ft. of Head | 200 |
| Amps | 1 A |
| Includes | Float Activated Switch for Automatic High-Level Water Detection, Overflow Detection Switch |
| Discharge | 3/8 |
| GPH of Water @ 12 Ft. of Head | 67 |
| Cord Length | 6 ft |
| Max. Head - Pumps | 14 ft |
| Pump Type | Standard |
| Shaft Material | Stainless Steel |
| Height | 9 3/4 in |
| HP | 1/50 |
| GPH of Water @ 9 Ft. of Head | 125 |
| Max. Pressure | 6.1 psi |
| Length | 12 in |
| GPH of Water @ 5 Ft. of Head | 170 |
| Width | 6 in |
| Standards | cCSAus |
| Overall Height | 9.46 in |
| Overall Width | 6 in |
| Overall Length | 12.1 in |
| Max. Head Range | 10 ft to 19 ft |
| Discharge Connection | 3/8 in Barbed |
| Electrical Connection Type | Cord with Plug |
| Maximum Media Temperature | 120 Degrees F |
| Intake Connection | 1 1/8 in Open |
| Compatible Media Type | Water |
| Number of Intakes | 2 |
| Series Family | VCL |
| Maximum Flow Rate @ 5 Feet of Head | 2.4 gpm |
| Discharge Connection Style | Barbed |
| Maximum Ambient Temperature | 120 Degrees F |
| Horsepower | 1/50 hp |
| Pump Housing Material | ABS Plastic |
| Plenum Rated | No |
| Maximum Flow Rate @ 10 Feet of Head | 2.1 gpm |
| For Use With Potable Systems | No |
| Maximum Operating Pressure | 6.1 psi |
| Pump Activation Type | Float Switch |
| Tank Capacity | 1 gal |
| Maximum Flow Rate @ 50 Feet of Head | [DELETE] |
| Frequency | 60 Hz |
| Shut Off Level | 1.9 in |
| Intake Connection Style | Open |
| Maximum Flow Rate @ 15 Feet of Head | 2.1 gpm |
| Compatible Discharge Pipe Size | 3/8 in |
| Compatible Intake Pipe Size | 1 1/8 in |
| Body Gasket Material | Stainless Steel |
| Nameplate Voltage | 115V AC |
| Manufacturer Warranty Length | 1 yr |
| Phase | Single |
| Turn On Level | 3.5 in |
| Maximum Feet of Head | 14 ft |
| Series | VCL-14ULS |
| Maximum Flow Rate @ 1 Feet of Head | 3.3 gpm |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |

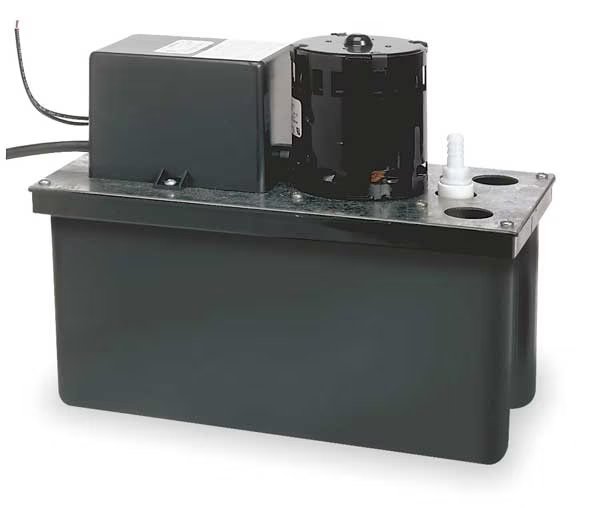

Pump, Condensate, 115 V, Little Giant Pump, Mfr#: 553101
$178.99
Free shipping will be applied on orders over $50
Condensate Removal Pump, Discharge Connection Style Barbed, Horsepower 1/50 hp, Includes Float Activated Switch for Automatic High-Level Water Detection, Overflow Detection Switch, Intake Connection Style Open, Maximum Feet of Head 14 ft, Maximum Flow Rate @ 10 Feet of Head 2.1 gpm, Maximum Flow Rate @ 15 Feet of Head 2.1 gpm, Maximum Flow Rate @ 1 Foot of Head 3.3 gpm, Maximum Media Temperature 120 Degrees F, Nameplate Voltage 115V AC, Plenum Rated No, Pump Type Standard, Series VCL-14ULS
