| Item | Fan Speed Control |
| Input Volts AC @ 60/50 Hz | 208/240 |
| Triac Output Amps | 8 |
| Ambient Temp. Range (C) | -40 to 60 |
| Requires | P266SNR-1C or P266SNR-2C |
| Hard Start Timing (Sec.) | 2 sec |
| Controls | Single Stage Condenser Fans |
| Control Volts | 208/240 |
| Standards | C-Tick Compliant (N1813), C-UL-US, CE Listed, FCC, ICES-003 |
| Application | Air Conditioning, Refrigeration |
| Input Voltage | 208/240V AC |
| Overall Height | 6 1/4 in |
| Contact Form | SPST |
| Minimum Operating Temperature | -40 Degrees F |
| Number of High VAC TRIACs | 3 |
| Number of Auxiliary Contacts | 3 |
| Body Material | Aluminum |
| Product Type | Fan Speed Control |
| Weight | 2.2 lb |
| Percentage of Supply Voltage to Start | 40 % |
| Maximum Operating Temperature | 140 Degrees F |
| Number of Inputs | Pressure Sensor (1) |
| Number of Pressure Sensors Included | 3 |
| Maximum Control Pressure Setpoint | 754 psi |
| Output Voltage | 208/240V AC |
| Primary Voltage | 208/240V AC |
| Output Current | 8 A |
| Maximum Temperature Setting | 140 Degrees F |
| Series | P266 |
| Items Controlled | Fans |
| Minimum Control Pressure Setpoint | 0 psi |
| Overall Depth | 2 3/4 in |
| IP Rating | IP54 |
| Input Sensor Type | Pressure Sensor |
| Frequency | 50/60 Hz |
| Plate Material | Aluminum |
| Switch Type | Dual Slide |
| Minimum Temperature Setting | -40 Degrees F |
| NEMA Rating | 3R |
| Overall Width | 7 in |
| Electrical Connection Type | Quick Connect Terminals |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

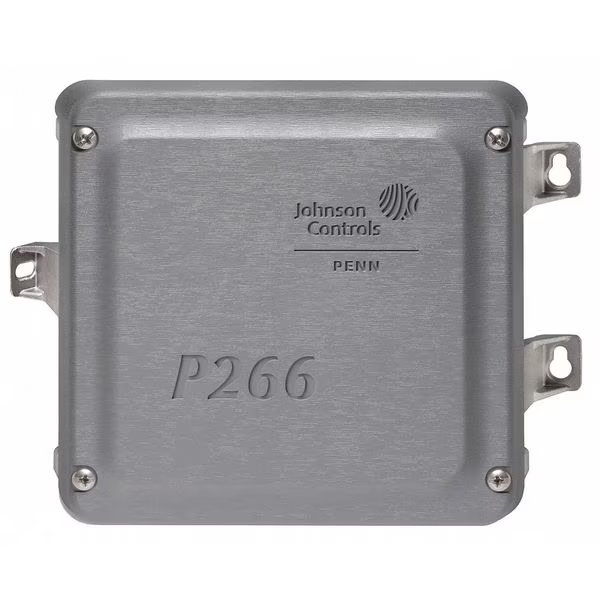

Condenser Fan Speed Control, JOHNSON CONTROLS, Mfr# P266ABA-100C
$472,99
-$31.65 / ea
with subscription
Free shipping will be applied on orders over $50
Fan Speed Control, Maximum Control Pressure Setpoint 754 psi, Minimum Control Pressure Setpoint 0 psi, Maximum Temperature Setting 140 Degrees F, Minimum Temperature Setting -40 Degrees F, Input Voltage 208/240V AC, Output Voltage 208/240V AC, Electrical Connection Type Quick Connect Terminals, Output Current 8 A, Contact Form SPST, Input Sensor Type Pressure Sensor, Number of Inputs Pressure Sensor (1), Number of Pressure Sensors Included 3, Number of High VAC TRIACs 3
9999 in stock
Must order in multiples of 1
Subtotal:
$472.99
