| Property | Value |
|---|---|
| Item | Control Station |
| Number of Gangs | 2 |
| Contact Form | 2NO/2NC |
| Legend | Start/Stop |
| Type of Operator | Push Button/Push Button/Pilot Light |
| Number of Pilot Lights | 1 |
| Number of Operators | 2 |
| NEMA Rating | 7, 9 |
| Hub Style | Dead-End |
| Series | EFD/EFDB |
| Hub Size | 3/4 in |
| Standards | CSA C22.2 No.25, CSA C22.2 No.30, CSA C22.2 No.14, cULus, E10449, UL 1203, UL 508 |
| Contact Rating | 10A @ 600V AC |
| Action | Momentary/Momentary |
| Enclosure Material | Aluminum |
| Depth | 4.69 in |
| Width | 6.19 in |
| Height | 4.63 in |
| Mounting | Surface |
| Safety Rating | Class 1, Division 1, Groups C, D; Class 1, Division 2, Groups B, C, D; Class 2, Division 1 and 2, Groups E, F, G; and Class 2I |
| IP Rating | IP54 |
| Product Type | Control Station |
| Overall Height | 6.13 in |
| Overall Width | 3 in |
| Mounting Style | Flange |
| Maintained Action Release | Not Applicable |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2 |
| Operator Configuration | Push Button |
| Hub Size - Maximum | 3/4 in |
| AC Contact Rating | 10 A @ 600 V |
| Resistance Properties | Arc Resistant, Corrosion Resistant, Dust Ignition Proof, Explosion Proof, High Dielectric Strength, Thermal Resistant |
| Operating Temperature - Minimum | -13 Degrees F |
| Overall Depth | 4.81 in |
| NEMA Enclosure Rating | 3, 7, 9 |
| Operating Temperature - Maximum | 104 Degrees F |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

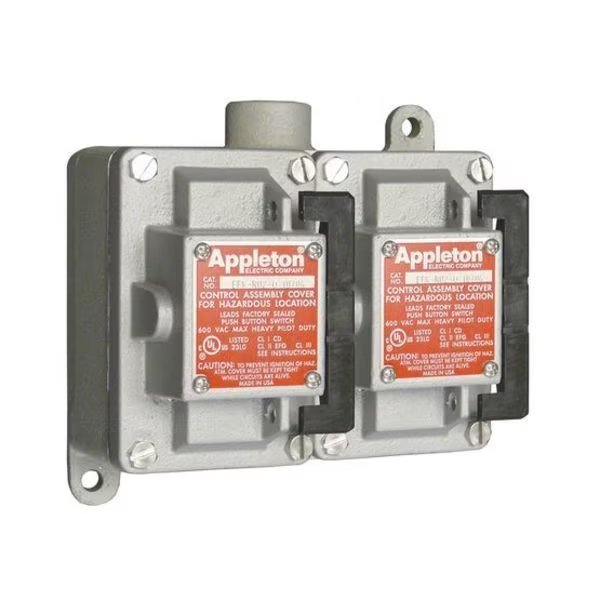

Control Station, 3/4 In, 2 Gang, 10A @ 600V, Appleton Electric, Mfr#: EFD275-J1U2
$839.99
Free shipping will be applied on orders over $50
Control Station, Number of Operators 2, Number of Pilot Lights 1, Legend Start/Stop, Type of Operator Push Button/Push Button/Pilot Light, Action Momentary/Momentary, Contact Form 2NO/2NC, NEMA Rating 7, 9, Contact Rating 10A @ 600V AC, IP Rating IP54, Mounting Surface, Height 4.63 in, Width 6.19 in, Depth 4.69 in, Enclosure Material Aluminum, Standards CSA C22.2 No.25, CSA C22.2 No.30, CSA C22.2 No.14, cULus, E10449, UL 1203, UL 508
9999 in stock
Subtotal:
$839.99
