| Property | Value |
|---|---|
| Item | Current Transducer |
| Range (Amps) | 20/100/150 |
| Output | 0 to 10V DC |
| Loop Supply Voltage | Self Powered |
| Rated Insulation Volts | 600V AC |
| Input Frequency (Hz) | 50/60 |
| Length (In.) | 1.0625 in |
| Includes | (2) Screws |
| Hole Dia. (In.) | 23/32 x 13/16 |
| Width (In.) | 2.5625 in |
| Height (In.) | 2.7188 in |
| Product Type | Current Transducer |
| Output Current - Minimum | 0 mA |
| Current Setting - Minimum | 20 A |
| Output Voltage - Maximum | 10 V DC |
| Rated Insulation Voltage - Minimum | Not Applicable |
| Output Voltage - Minimum | 0 V DC |
| Rated Insulation Voltage - Maximum | 600 V AC |
| Overall Height | 2.72 in |
| Overall Depth | 1.06 in |
| Mounting Hole Length | 0.81 in |
| Current Setting - Maximum | 150 A |
| Mounting Hole Width | 0.72 in |
| Output Current - Maximum | Not Applicable |
| Overall Width | 2.56 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

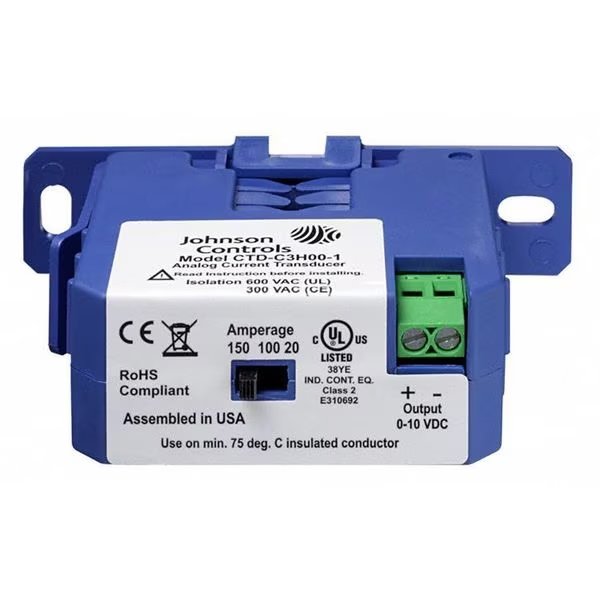

Current Transducer, Split, Foot Mounted, Johnson Controls, Mfr#: CTD-C3H00-1
$137.99
Free shipping will be applied on orders over $50
Current Transducer, Range (Amps) 20/100/150, Output 0 to 10VDC, Loop Supply Voltage Self Powered, Rated Insulation Volts 600VAC rms, Input Frequency (Hz) 50/60, Length (In.) 1-1/16, Width (In.) 2-9/16, Height (In.) 2-23/32, Hole Dia. (In.) 23/32 x 13/16, Includes Foot Mounting Holes
9999 in stock
