| Property | Value |
|---|---|
| Item | DC Power Solenoid |
| Coil Voltage DC | 24 V DC |
| Amps | 50 |
| Contact Form | SPST-NO |
| Duty Cycle | Continuous |

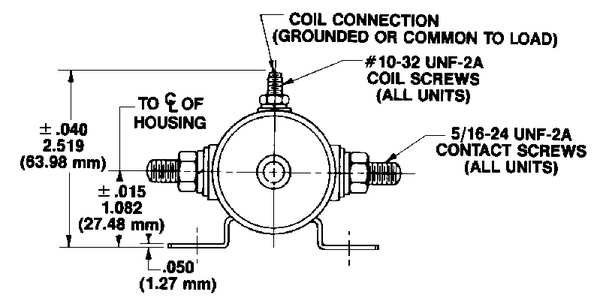

| Coil Termination | #10-32 UNF-2A Thread |
| Standards | File AU2138, UL 538 |
| Enclosure | Dust Resistant |
| Mounting Base | Standard Bracket |
| Contact Termination | 5/16 in-24 UNF-2A Thread |
| Coil Type | Isolated |
| Contact Material | Copper |
| Series | 70 |
| Includes | Not Applicable |
| Coil Resistance | 60 ohm |
| Contact Rating | 24A |

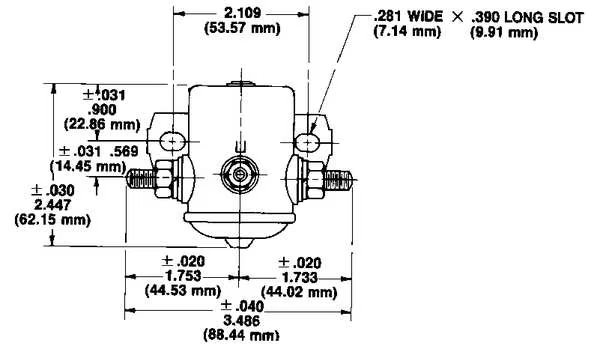

| Height | 2.4 in |
| Temperature Range | -40 to 122ΓΒ°F |
| Length | 2.47 in |
| Width | 3.48 in |
| Minimum Operating Temperature | -40 Degrees F |
| Resistance Properties | Dust Resistant |
| Dielectric Strength | 500 V |
| Coil Voltage | 24 V DC |
| Electrical Operating Durability | 100,000 |
| Mechanical Operating Durability | 250,000 |
| Power Consumption | 9 W |
| Weight | 14 oz |
| Maximum Operating Temperature | 122 Degrees F |
| Current Rating | 50 A |
| Number of Terminals | 4 |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
DC Power Solenoid, 24V, Amps 50, White-Rodgers, Mfr#: 70 117224S1
$31.39
Free shipping will be applied on orders over $50
DC Power Solenoid, Current Rating 50 A, Contact Form SPST-NO, Coil Voltage 24 V DC, Duty Cycle Continuous, Contact Termination 5/16 in-24 UNF-2A Thread, Series 70, Coil Resistance 60 ohm, Coil Termination #10-32 UNF-2A Thread, Coil Type Isolated, Contact Material Copper, Dielectric Strength 500 V, Electrical Operating Durability 100,000, Height 2.4 in, Includes Not Applicable, Length 2.47 in, Maximum Operating Temperature 122 Degrees F, Mechanical Operating Durability 250,000
9999 in stock
Subtotal:
$31.39
