Item | Mechanical Bore Gauge |
Contact Point Material | Carbide |
Requires Indicator | Yes |
Range per Revolution | 0.01 in |
Case Type | Case |
Includes Case | Yes |
Series | 511 |
Number of Anvils | 26 |
Range | 0.7 in to 6 in |
Compatible Dial Graduations | Indicator Included |
Minimum Measurement - Inch | 0.7 in |
Resolution | 0.0001 in |
Includes | (10) Spacers, (2) Sub Anvils, (26) Anvils, Cover Assembly, Fitted Case, Spanner |
Maximum Measurement - Inch | 6 in |
Number of Gauges | 1 |
Accuracy | +/-0.0001 In |
Minimum Measurement - mm | 17.78 mm |
Contact Style | Ball |
Dial Graduation | 0.0001 in |
Included Indicator | 2923AB-10 |
Included Anvils | 0.709 in, 0.787 in, 0.866 in, 0.945 in, 1.024 in, 1.102 in, 1.181 in, 1.26 in, 1.339 in, 1.378 in, 1.575 in, 1.772 in, (2) 1.969 in, (2) 2.165 in, (2) 2.362 in, 2.559 in, 2.756 in, 2.953 in, 3.15 in, 3.346 in, 3.543 in, 3.7 in, 3.937 in |
Operation Type | Mechanical |
Includes Indicator | Yes |
Interchangeable Head | No |
Included Spacers | (3) 0.02 in, (3) 0.04 in, (2) 0.08 in, (2) 0.12 in |
Number of Spacers | 10 |
Repeatability | +/-0.0001 in |
Maximum Measurement - mm | 152.4 mm |
Dimension Type | Inch |
Country of Origin (subject to change) | Japan |
Package Quantity | 1 |

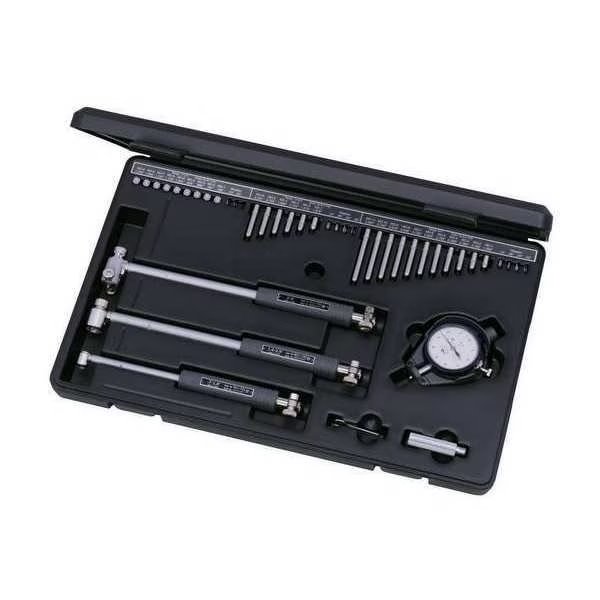

Dial Bore Gauge, MITUTOYO, Mfr# 511-932-20
$1115,99
-$1115.99 / ea
with subscription
Free shipping will be applied on orders over $50
Dial Bore Gauge
9999 in stock
Must order in multiples of 1
Subtotal:
$1115.99
