Housing Material - Pumps
Aluminum
Diaphragm Material - Pumps
Buna N

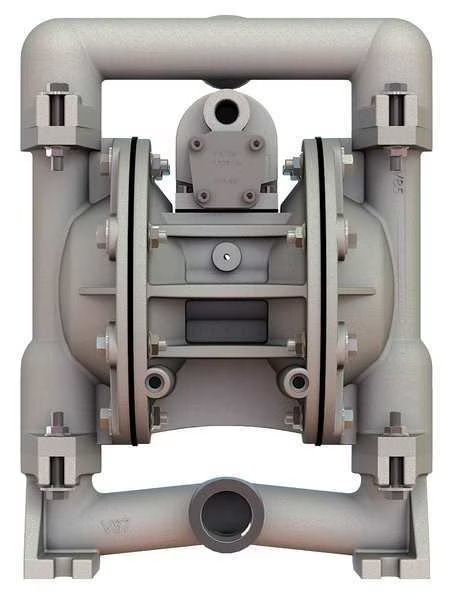

Item - Air Operated Pumps
Double Diaphragm Pump
Max. Temp - Pumps
180 Degrees F
Air Inlet Size
3/8 in FNPT
Agency Compliance
ABS, ATEX, CE, EAC
Manifold Connection
Single Port
Max. Operating Pressure
125 psi
Manufacturers Warranty Length
1 yr
Operation Type
Air Operated
Check Seat Material
Aluminum
Item
Double Diaphragm Pump
Standards
ATEX, EN ISO 80079-36: 2016, EN ISO 80079-37: 2016, EN60079-25: 2010
Fluid Connection Size
1 in
Flow Rate @ 120 psi
Not Applicable
Media Discharge Location
Center, Top
Solid Diameter (Maximum)
0.13 in
Wetted Housing Material
Aluminum
Flow Rate @ 100 psi
48.2 gpm
Fluid Discharge Connection
1 in NPT
Flow Rate @ 60 psi
40.8 gpm
Media Intake Connection Type
NPT
Air Intake Connection Type
NPT
Air Intake Connection Size
3/8 in
Flow Rate @ 80 psi
45.4 gpm
Air Intake Pressure (Maximum)
125 psi
Flow Rate @ 40 psi
36.4 gpm
Media Intake Location
Bottom, Center
Overall Size
9.1 in x 10.8 in x 14.5 in
Flow Rate @ 20 psi
26.5 gpm
For Use With Potable Systems
No
Flow Rate @ 70 psi
Not Applicable
Flow Rate @ 15 psi
Not Applicable
Media Temperature (Maximum)
180 Degrees F
Non-Wetted Housing Material
Aluminum
Chemical Compatibility
Alcohol, Ammonium Hydroxide, Antifreeze, Diesel, Diesel Exhaust Fluid, Gasoline, Kerosene, Water
Port Location
Bottom Top, Center Center, Center Top
Media Discharge Connection Type
NPT
Flow Rate @ 90 psi
Not Applicable
Operating Pressure (Maximum)
125 psi
Feet of Head (Maximum)
320 ft
Media Discharge Connection Size
1 in
Air Consumption (Maximum)
50 scfm
Flow Rate @ 10 psi
Not Applicable
Flow Rate (Maximum)
49 gpm
Manifold Connection Type
NPT
Media Intake Connection Size
1 in
Fluid Intake Connection
1 in NPT
Flow Rate @ 30 psi
Not Applicable
Flow Rate @ 50 psi
Not Applicable
Country of Origin (subject to change)
United States
