Item

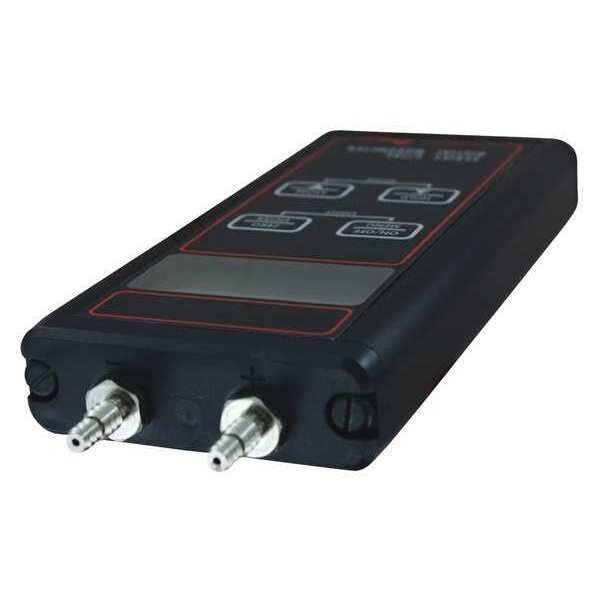

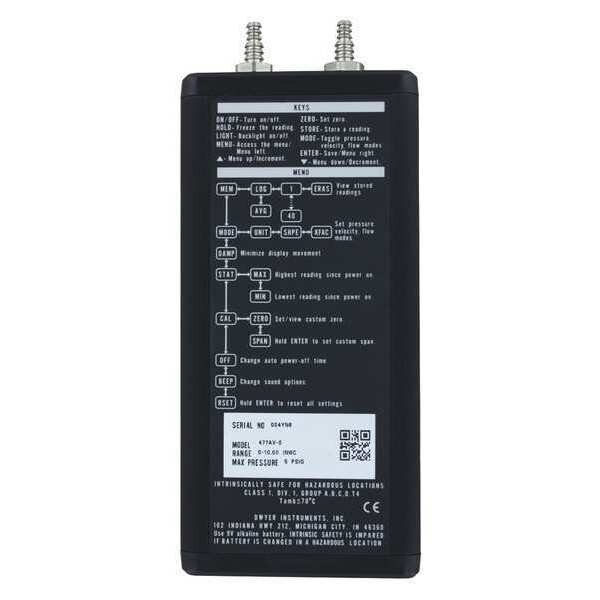

Handheld Digital Manometer
Air Velocity Accuracy
+/-0.5% Full Scale from 60 to 78 Degrees F, +/-1.5% Full Scale from 32 to 60 Degrees F and 78 to 104 Degrees F
Operating Range
0 to 30.00 psi
Pressure Range
0 psi to 30 psi
Operating Temp. Range
0 Degrees to 140 Degrees F
Storage Temp. Range
-4 Degrees to 176 Degrees F
Includes
Battery, Wrist Strap
Manufacturers Warranty Length
1 yr
Standards and Approvals
CE
For Use With
Air, Compatible Gases
Maximum Operating Temperature
140 Degrees F
Digital Display Features
4 Digit LED
Type of Pressure
Differential, Negative, Positive
Air Volume Units
cfm, cu m/hr, cu m/sec
Maximum Air Velocity
115,400 fpm
Application
Air; Compatible Gases
Process Connection Type
Hose Barb
Number of Pressures Measured
Dual, Single
Minimum Operating Temperature
0 Degrees F
Maximum Operating Pressure
60 psi
For Tubing Diameter
1/8 in, 3/16 in
NIST Traceable Certificate
No
Process Connection Size
1/8 in, 3/16 in
Storage Temperature Range
-4 Degrees to 176 Degrees F
Pressure Resolution
0.01 psi
Air Velocity Units
fpm, fps, k/h, knot, m/h, mps, mph
Connections
1/8 in Hose Barb, 3/16 in Hose Barb
Connection Size
1/8 in, 3/16 in
Operating Pressure Range
0 to 30 psi
Manometer Type
Digital Manometer u0026 Airflow Meter
Air Velocity Range
115,400 fpm
Country of Origin (subject to change)
United States
