Promotion Restriction
Not eligible for promotion
Multimeter Style
Full Size - General Features
Basic DC Accuracy
+/-0.09% of Reading +2 Digits
Instrument Safety Rating
CAT III 1000V, CAT IV 600V
Instrument Frequency Counter Range
0.01 Hz to 100 kHz
Includes

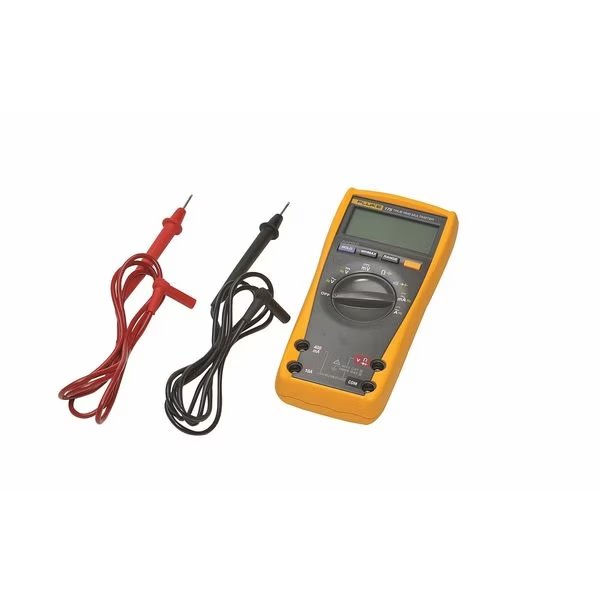

(1 Pair) Test Leads, 9V Battery (Installed), Quick Reference Guide
Special Features
Closed Case Calibration Through Front Panel, Ergonomic Case with Integrated Protective Holster
Temp. Range
14 Degrees to 122 Degrees F
Series
FLUKE (R) Fluke-177
Manufacturers Warranty Length
Lifetime
Calibration Certificate Included
No
Capacitance Range
1 nF to 10,000 uF
Standards
CSA, EN61010-1, TUV, UL, VDE
Calibration Certificate
Not Included
Minimum Capacitance Measurement
1 nF
Maximum Operating Temperature
122 Degrees F
Maximum Frequency Measurement
100 kHz
Frequency Measurement Resolution
0.01 Hz
Minimum DC Current Measurement
0 A
Maximum AC Voltage Measurement
1,000 V
Basic AC Current Accuracy
+/-(1.5% + 3)
Capacitance Measurement Accuracy
+/-(1.2% + 2)
Basic DC Voltage Accuracy
+/-0.09% + 2 Digits
Maximum Resistance Measurement
50 megaohm
Capacitance Measurement Resolution
1 nF
Computer Interface Connection Type
None
Minimum Operating Temperature
14 Degrees F
AC Voltage Measurement Resolution
Not Applicable
Maximum DC Current Measurement
10 A
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance
Minimum Storage Temperature
-22 Degrees F
Maximum Capacitance Measurement
10,000 uF
Maximum AC Current Measurement
10 A
DC Current Measurement Resolution
Not Applicable
Resistance Measurement Accuracy
+/-0.9%
Frequency Measurement Accuracy
+/-(0.1% + 1)
Minimum AC Voltage Measurement
0 V
Basic DC Current Accuracy
+/-(1.0% + 3)
Minimum AC Current Measurement
0 A
Maximum DC Voltage Measurement
1,000 V
Minimum DC Voltage Measurement
0 V
Battery Chemistry
Alkaline
Minimum Temperature Measurement
14 Degrees F
Temperature Measurement Accuracy
Not Applicable
Minimum Frequency Measurement
0.01 Hz
Basic AC Voltage Accuracy
+/-(1.0% + 3)
AC Current Measurement Resolution
Not Applicable
DC Voltage Measurement Resolution
Not Applicable
Maximum Temperature Measurement
122 Degrees F
Maximum Storage Temperature
140 Degrees F
Resistance Measurement Resolution
Not Applicable
Current Leakage Testing
No
Min-Max-Avg Button Included
Yes
Minimum/Maximum Memory
Yes
Multimeter Features
Data Logging
AC Response Calculation
TRMS
Country of Origin (subject to change)
United States
