| Property | Value |
|---|---|
| Flat Contact Dia. | 0.394 in |
| Resolution (In.) | 0.00050 |
| Throat Depth | 4.7 in |
| Item | Digital Thickness Gauge |
| Accuracy | +/-0.001 in |
| Long Form Calibration Certificate | Yes |
| Includes | Certificate of Calibration |
| Features | IDS Digimatic Indicator w/SPC Output, CERA Ceramic Anvils |
| Range (In.) | 0 to 0.470 |
| Contact Type | Flat CERA |
| Range (mm) | 0-12mm |
| Resolution (mm) | 0.01 |
| Resolution | 0.0005 in, 0.01 mm |
| Data Output Type | Cable |
| Grip Style | Convenient Grip |
| Maximum Measuring Force | 1.5 N |
| Range | 0 in to 1/2 in, 0 mm to 12 mm |
| Minimum Measurement - Inch | 0.0005 in |
| Operation Type | Digital |
| Battery Size | Silver Oxide Cell SR44 |
| Dimension Type | Inch/Metric |
| Included Certification | Certificate of Calibration |
| Anvil Shape | Flat |
| Contact Material | Ceramic |
| Anvil Diameter | 0.394 in |
| Minimum Measurement - mm | 0.01 mm |
| Compatible SPC Cable | Mfr. No. 905338 |
| Display Type | LCD |
| Maximum Measurement - mm | 12 mm |
| SPC Output | Yes |
| Maximum Measurement - Inch | 0.4700 in |
| Includes Battery | Yes |
| Actuation Type | Trigger |
| Range - Inch | 0 to 0.470 |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |

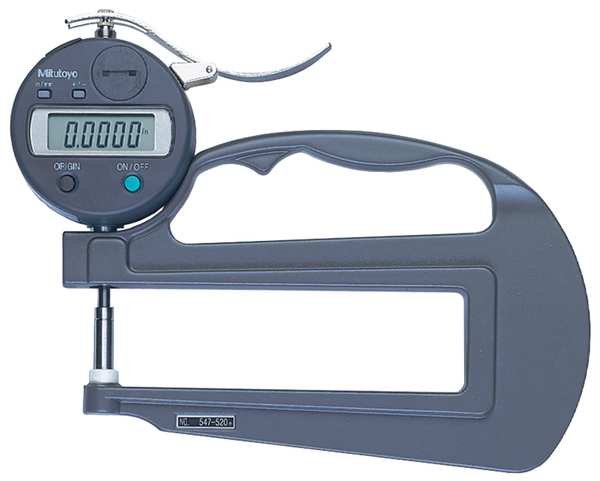

Digital Thickness Gage, 0 to 0.470In, Mitutoyo, Mfr#: 547-520SCAL
$480.99
Free shipping will be applied on orders over $50
Digital Thickness Gauge, Resolution 0.0005 in, 0.01 mm, Accuracy +/-0.001 in, SPC Output Yes, Data Output Type Cable, Long Form Calibration Certificate Yes, Actuation Type Trigger, Anvil Shape Flat, Contact Material Ceramic, Dimension Type Inch/Metric, Maximum Measurement - Inch 0.4700 in, Maximum Measurement - mm 12 mm, Minimum Measurement - Inch 0.0005 in, Minimum Measurement - mm 0.01 mm, Operation Type Digital, Range 0 in to 1/2 in, 0 mm to 12 mm, Throat Depth 4.7 in, Anvil Diameter 0.394 in
