Promotion Restriction
Not eligible for promotion
Acceleration Range
2 to 656 ft/sq sec or 0.5 to 200 m/sq sec
Frequency Range (Hz)
10 to 1 K
Temp. Range (F)
32 Degrees to 122 Degrees
Velocity
0.02 to 7.87 in/sec or 0.5 to 200 mm/sec
Includes
Carrying Case, Magnetic Mount, Stand
Manufacturers Warranty Length
1 yr
Special Features
Displacement (peak-to-peak) measurement, Manual.Auto store/Recall up to 500 readings, RMS or Peak value measurement, Wide 10Hz to 1kHz frequency range
Temp. Range (C)
0 Degrees to 50 Degrees

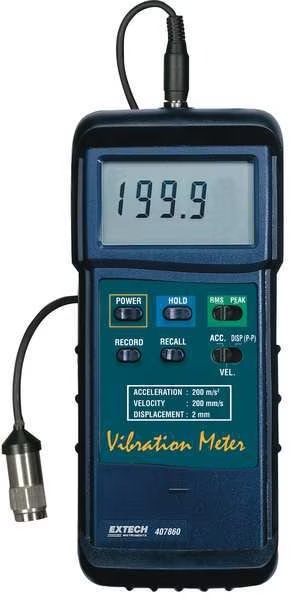

Product Type
Vibration Meter
Digital Display Screen Type
LCD
Minimum Displacement Measured
0.001 in
Maximum Velocity Measured
7.87 in/sec
Maximum Displacement Measured
0.078 in
Acceleration Measurement - Minimum
2 ft/sq sec
Number of Batteries Required
1
Minimum Velocity Measured
0.02 in/sec
Acceleration Max Resolution
2 ft/sq sec
Number of Records Stored
500
Velocity Max Resolution
0.02 in/sec
Frequency Ranges
10 to 1 KHz
Features
Remote Vibration Sensor
Displacement Max Resolution
0.001 in
Maximum Operating Temperature
122 Degrees F
Testing Functions
Acceleration, Displacement, Velocity
Acceleration Measurement - Maximum
656 ft/sq sec
Minimum Operating Temperature
32 Degrees F
Manufacturer Warranty Length
3 yr
Country of Origin (subject to change)
Taiwan, Province of China
