| Property | Value |
|---|---|
| Voltage Rating | 300 VAC |
| Wire Size | 28 to 10 AWG |
| Screw Size | M3 |
| Circuit Application | Power |
| Screw Base Material | Steel |
| UL Flammability Rating | UL 94V-0 |
| Number of Circuits | 1 |
| Connector Mounting Type | DIN Rail |
| Contact Configuration | Quick Connect |
| Operating Temperature Range | -40 to 105°C |
| Contact Base Material | Brass |
| Centerline (Pitch) | .24 in |
| Contact Current Rating (Max) | 30 A |
| Number of Positions | 1 |
| Sealable | No |
| Modular Terminal Block Product Type | Screw Terminal Block |
| Block Type | Standard |
| Screw Plating Material | Zinc |
| Tightening Torque | 6.2 in-lbs |
| Contact Plating Material | Tin |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |

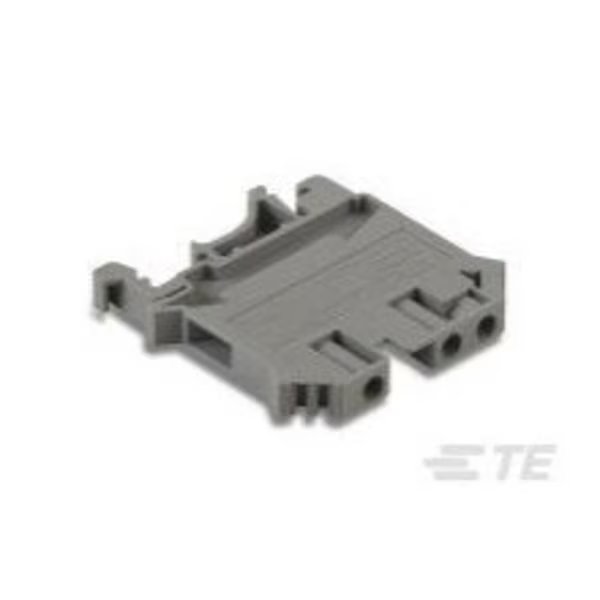

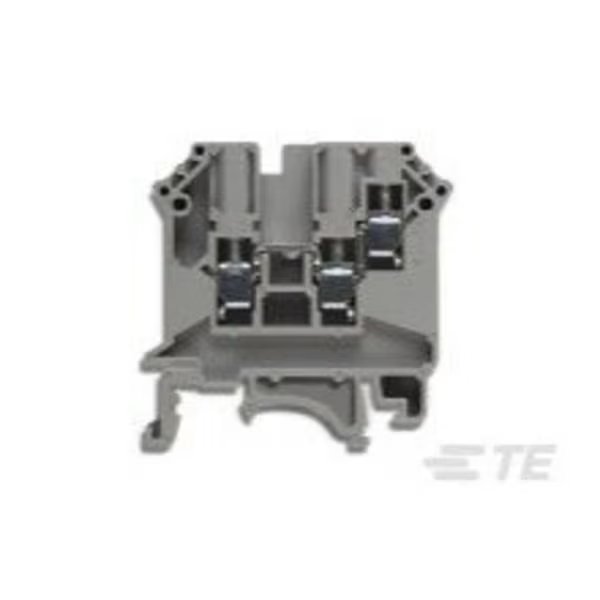

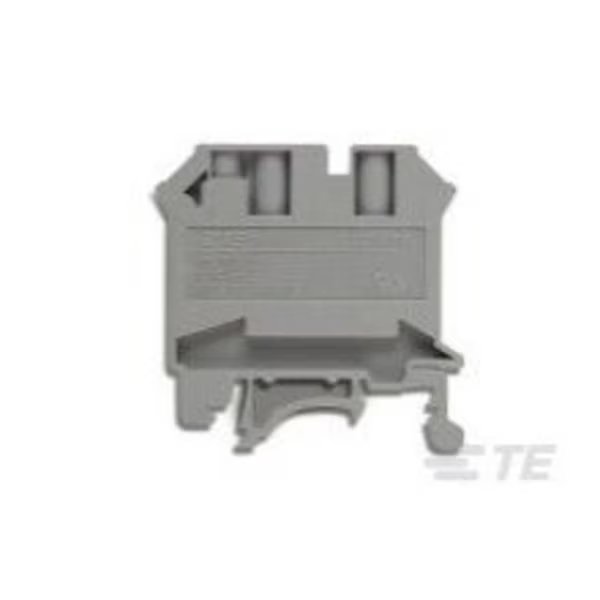

Din Rail Terminal Blocks 4Mm2, 1 In 2 Out Screw Terminal Block, Te Connectivity, Mfr#: 2271681-4
$10.29
Free shipping will be applied on orders over $50
9999 in stock
Must order in multiples of 15
Subtotal:
$154.35
