Housing Material - Pumps
Aluminum
Diaphragm Material - Pumps
Buna N

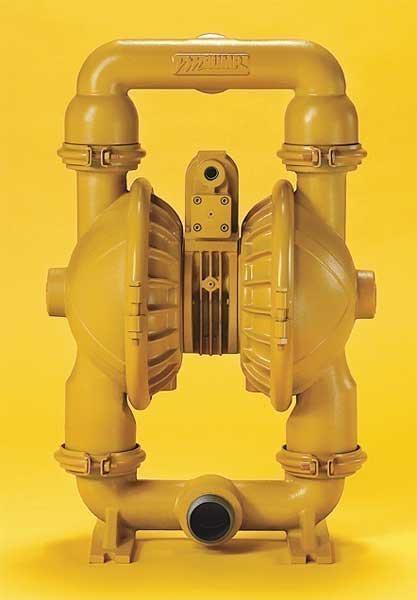

Item - Air Operated Pumps
Double Diaphragm Pump
Max. Temp - Pumps
180 Degrees F
Air Inlet Size
1/2 in FNPT
Agency Compliance
ABS, ATEX, CE, EAC
Manufacturers Warranty Length
1 yr
Operation Type
Air Operated
Check Seat Material
Buna-N
Max. Operating Pressure
125 psi
Manifold Connection
Single Port
Item
Double Diaphragm Pump
Standards
ABS Type Approved, ATEX Certified, CE Certified, EAC
Feet of Head (Maximum)
320 ft
Flow Rate (Maximum)
163 gpm
Media Discharge Location
Center, Top
Flow Rate @ 20 psi
78.1 gpm
Media Discharge Connection Size
2 in
Flow Rate @ 100 psi
142.7 gpm
Flow Rate @ 90 psi
Not Applicable
Fluid Connection Size
2 in
Media Intake Connection Size
2 in
Air Intake Connection Size
1/2 in
Flow Rate @ 10 psi
Not Applicable
Media Temperature (Maximum)
180 Degrees F
Fluid Discharge Connection
2 in NPT
Flow Rate @ 40 psi
110.1 gpm
Solid Diameter (Maximum)
0.44 in
Air Intake Pressure (Maximum)
125 psi
For Use With Potable Systems
No
Flow Rate @ 80 psi
132.1 gpm
Manifold Connection Type
NPT
Media Intake Connection Type
FNPT
Air Intake Connection Type
FNPT
Flow Rate @ 60 psi
123.2 gpm
Non-Wetted Housing Material
Aluminum
Flow Rate @ 70 psi
Not Applicable
Media Intake Location
Bottom, Center
Operating Pressure (Maximum)
125 psi
Wetted Housing Material
Aluminum
Flow Rate @ 15 psi
Not Applicable
Flow Rate @ 50 psi
Not Applicable
Media Discharge Connection Type
NPT
Port Location
Bottom Top, Center Center, Center Top
Air Consumption (Maximum)
140 scfm
Flow Rate @ 30 psi
Not Applicable
Fluid Intake Connection
2 in FNPT
Flow Rate @ 120 psi
Not Applicable
Chemical Compatibility
Alcohol, Ammonium Hydroxide, Antifreeze, Diesel, Diesel Exhaust Fluid, Gasoline, Kerosene, Water
Overall Size
13.5 in x 17.7 in x 26.7 in
Country of Origin (subject to change)
United States
