Housing Material - Pumps
Kynar(R)
Diaphragm Material - Pumps
Santoprene(R)

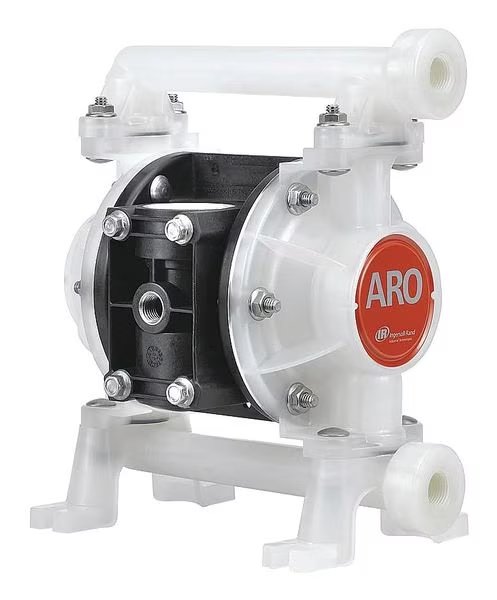

Item - Air Operated Pumps
Double Diaphragm Pump
Max. Temp - Pumps
200 Degrees F
Air Inlet Size
1/4 in FNPT
Agency Compliance
CE, REACH, RoHS
Manufacturers Warranty Length
5 yr
Max. Operating Pressure
100 psi
Ball Material
Santoprene(R)
Diaphragm Material
Santoprene
Item
Double Diaphragm Pump
Manifold Connection
Multiport
Operation Type
Air Operated
Viscosity (Maximum)
500 cps
Air Intake Pressure (Maximum)
100 psi
Flow Rate @ 90 psi
10.8 gpm
Solid Diameter (Maximum)
0.06 in
Flow Rate @ 60 psi
9.5 gpm
Media Temperature (Maximum)
225 Degrees F
Flow Rate (Maximum)
11 gpm
Fluid Intake Connection
3/8 in NPT
Air Intake Connection Type
NPT
Fluid Discharge Connection
3/8 in NPTF
Wetted Housing Material
PVDF
Media Intake Connection Size
3/8 in
Port Location
Center Side, Side Center, Side Side
Media Discharge Connection Type
NPTF
Flow Rate @ 100 psi
11 gpm
Non-Wetted Housing Material
Plastic
Mounting Hardware Material
Stainless Steel
Manifold Connection Type
NPT
Media Intake Connection Type
NPT
Flow Rate @ 20 psi
Not Applicable
Media Intake Location
Center, Side
Air Intake Connection Size
1/4 in
Media Discharge Location
Center, Side
Flow Rate @ 15 psi
Not Applicable
Flow Rate @ 120 psi
Not Applicable
Media Discharge Size
3/8 in
Chemical Compatibility
Ammonium Hydroxide, Antifreeze, Calcium Carbonate, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Hydrochloric Acid 40%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Sodium Hypochlorite 5%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Water
Feet of Head (Maximum)
230 ft
Flow Rate @ 80 psi
10.5 gpm
Flow Rate @ 30 psi
Not Applicable
For Use With Potable Systems
No
Media Discharge Connection Size
3/8 in
Fluid Connection Size
3/8 in
Air Consumption (Maximum)
18 scfm
Overall Size
7.9 in x 5.7 in x 9.2 in
Media Temperature (Minimum)
-40 Degrees F
Operating Pressure (Maximum)
100 psi
Flow Rate @ 10 psi
Not Applicable
Country of Origin (subject to change)
United States
