Inlet and Outlet Dia. (In.) | 2.0/2.1 |
Item | Draft Inducer |
Voltage | 115 |
Depth (In.) | 9 1/2 in |
Construction Material | Plastic |
Height (In.) | 8 1/2 in |
For Use With Mfr. Model Number | 18L0401, 7021-10376 |
Fits Brand | Lennox |
Replaces | Fasco 702110376, Lennox 18L0401 |
Agency Compliance | CSA Motor Only, UL |
Width (In.) | 6 in |
Application | Furnaces |
CFM @ 1.40-In. SP | 54 |
CFM @ 0.700-In. SP | 83 |
CFM @ 1.000-In. SP | 75 |
CFM @ 0.000-In. SP | 98 |
CFM @ 0.500-In. SP | 88 |
Motor Insulation Class | B |
Phase | 1 |
For Appliance Type | Furnaces |
Wheel Diameter | 7 1/2 in |
Housing Material | Plastic |
Maximum Static Pressure | 3 1/4 in wc |
Maximum Fan Speed | 3,400 RPM |
Wheel Material | Polypropylene |
Overall Depth | 9 1/2 in |
OEM Replacement | Yes |
Airflow @ 0.000 in SP | 76 cfm |
Blower Type | Induced Draft Blower |
Overall Width | 6 in |
Maximum Motor Speed | 3,200 RPM |
Outlet Width | Not Applicable |
Frequency | 60 Hz |
Maximum Inlet Air Temperature | 40 Degrees C |
Overall Height | 8 1/2 in |
Outlet Shape | Round |
Current | 2.1 A |
Compatible with Brand | Lennox |
Outlet Dimensions | 2 in Round |
Nameplate Voltage | 115V AC |
Motor Type | Shaded Pole |
For Use With | Furnace |
Standards | CSA Certified, UL Listed |
Inlet Diameter | 2 in |
Replacement For Manufacturer Model Number | 18L0401, 702110376 |
Outlet Height | Not Applicable |
Outlet Diameter | 2 in |
Includes Motor | Yes |
Electrical Connection | Wire Leads |
Wheel Type | Backward-Curved |
Country of Origin (subject to change) | Mexico |
Package Quantity | 1 |

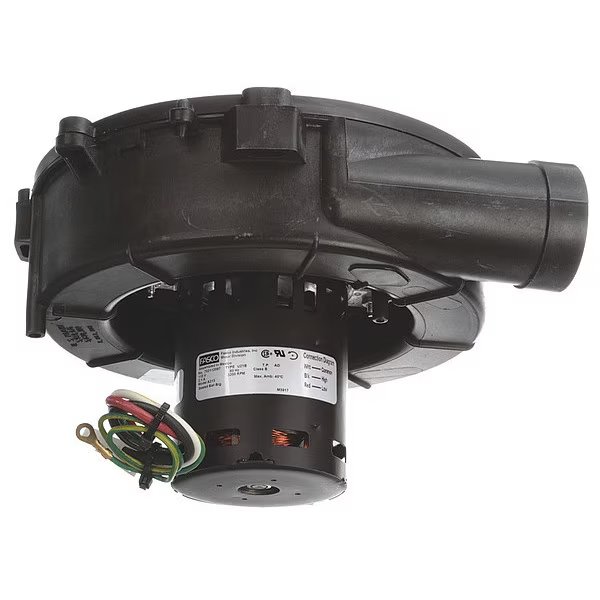

Draft Inducer, 115, Plastic, 8 1/2 in H., FASCO, Mfr# A213
$230,99
-$6.93 / ea
with subscription
Free shipping will be applied on orders over $50
Draft Inducer, Application Furnaces, For Appliance Type Furnaces, Inlet Diameter 2 in, Outlet Diameter 2 in, Compatible with Brand Lennox, Replacement For Manufacturer Model Number 18L0401, 702110376, Nameplate Voltage 115V AC, Phase 1, Current 2.1 A, Frequency 60 Hz, Electrical Connection Wire Leads, Motor Type Shaded Pole, Motor Insulation Class B, Maximum Fan Speed 3,400 RPM, Maximum Motor Speed 3,200 RPM, Maximum Inlet Air Temperature 40 Degrees C, Maximum Static Pressure 3 1/4 in wc
