Includes
Manual Drain Valve, Motor Starter, Pressure Gauge, Pressure Safety Valve
Compressor Type
Tank Mounted
Free Air CFM @ Max. Pressure
24
Lubrication Type
Splash Lubricated
Compressor Package Type
Base Model
Standards
ASME Approved, California Code, CSA
Tank Style - Air Compressor
Vertical
Tank Size - Air Compressor
80 gal
Item - Air Compressor
Stationary Air Compressor
Max. Pressure - Air Compressor
175 psi
Item
Electric Air Compressor

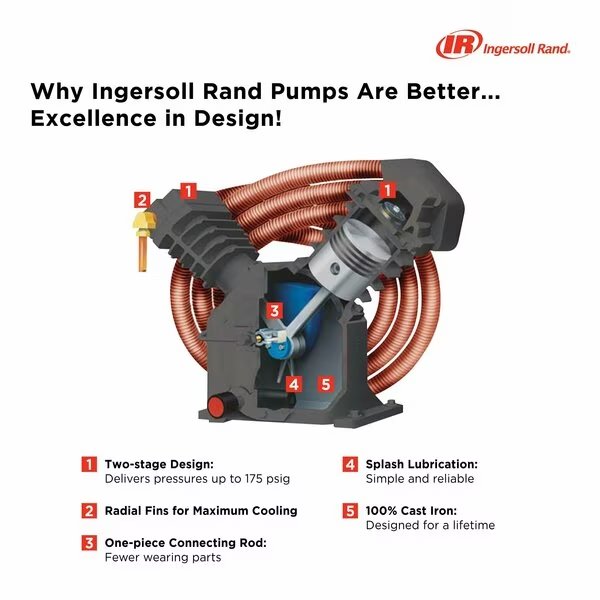

Number of Stages - Air Compressor
2
Input Voltage - Air Compressor
200V AC
Cylinder Material
Cast Iron
On Pressure Switch Setting
135 psi
HP - Air Compressor
7.5 hp
Pump Oil Capacity
41.6 fl oz
Free Air CFM @ Max. Pressure - Air Compressor
24.0
Style - Air Compressor
Simplex
Off Pressure Switch Setting
175 psi
Lubrication Type - Air compressor
Splash Lubricated
Pump Location - Air Compressor
Tank Mounted
Free Air Flow Rate @ Max Pressure
24 cfm
Sound Level Range
Standard (70 dBA or more)
Maximum Operating Pressure
175 psi
Control Type
Pressure Switch
Max Operating Pressure
175 psi
Enclosure Type
Open Dripproof
Compressor Voltage
200V AC
Free Air Flow Rate @ Maximum Pressure
24 cfm
Country of Origin (subject to change)
United States
