Item | Electric Ball Valve Actuator |
Voltage | 120 |
Signal Type | On-Off |
Torque | 20.2 in-lb |
Cycle Time | 10 sec |
Ambient Temp. Range | 35 Degrees to 122 Degrees F |
Depth | 2 5/8 in |
Enclosure Rating | NEMA 1 |
Stroke Deg. | 1/8 |
Power Consumption | 7 VA |
Height | 2 29/32 in |
Mounting | Direct Mount |
Electrical Connections | 20 in Wire |
Ball Valve Product Group | Actuated |
Type of Actuator | Non-Spring Return |
For Use With | VG5000 valves |
Standards | CE, UL |
Width | 2 29/32 in |
Country of Origin (subject to change) | Mexico |
Package Quantity | 1 |

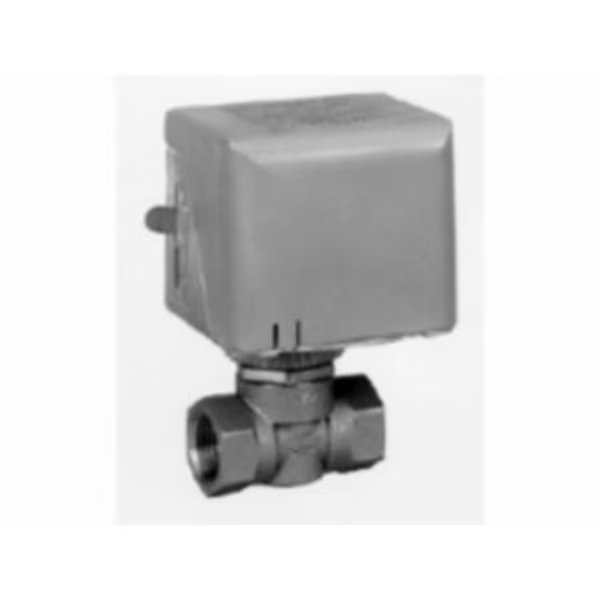

Electric Valve Actuator, On-Off, 120V, JOHNSON CONTROLS, Mfr# VA-7010-8002
$73,89
Free shipping will be applied on orders over $50
Electric Ball Valve Actuator, Voltage 120, Signal Type On-Off, Torque 20.2 in-lb, Cycle Time 10 sec, Ambient Temp. Range 35 Degrees to 122 Degrees F, Type of Actuator Non-Spring Return, Stroke Deg. 1/8, Height 2 29/32 in, Width 2 29/32 in, Depth 2 5/8 in, Electrical Connections 20 in Wire, Power Consumption 7 VA, Enclosure Rating NEMA 1, Direct Mount Mounting, For Use With VG5000 valves, Standards CE, UL
9999 in stock
Must order in multiples of 1
Subtotal:
$73.89
