| Item | Electric Ball Valve Actuator |
| Voltage | 24 |
| Signal Type | Proportional |
| Torque | 35 in-lb |
| Cycle Time | 60 sec |
| Ambient Temp. Range | -4 Degrees to 140 Degrees F |
| Width | 2 13/16 in |
| Stroke Deg. | 93 |
| For Use With | JCI VG1000 Ball Valve |
| Height | 2 45/64 in |
| Mounting | Direct Mount |
| Includes | Factory Mounted Valve Linkage |
| Type of Actuator | Non-Spring Return |
| Power Consumption | 2.1 VA |
| Enclosure Rating | NEMA 2 |
| Standards | C-Tick, CE, UL |
| Depth | 5 1/2 in |
| Ball Valve Product Group | Actuated |
| Electrical Connections | Screw Terminals |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

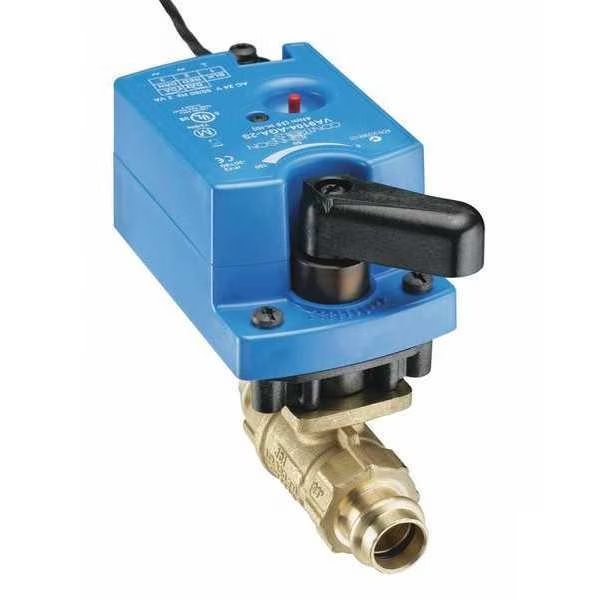

Electric Valve Actuator, Proportional, 24V, JOHNSON CONTROLS, Mfr# VA9104-GGA-3S
$149,99
-4% / ea
with subscription
Free shipping will be applied on orders over $50
Electric Ball Valve Actuator, Voltage 24, Signal Type Proportional, Torque 35 in-lb, Cycle Time 60 sec, Ambient Temp. Range -4 Degrees to 140 Degrees F, Type of Actuator Non-Spring Return, Stroke Deg. 93, Height 2 45/64 in, Width 2 13/16 in, Depth 5 1/2 in, Electrical Connections Screw Terminals, Power Consumption 2.1 VA, Enclosure Rating NEMA 2, Direct Mount Mounting, For Use With JCI VG1000 Ball Valve, Includes Factory Mounted Valve Linkage, Standards C-Tick, CE, UL
9999 in stock
Must order in multiples of 1
