| Property | Value |
|---|---|

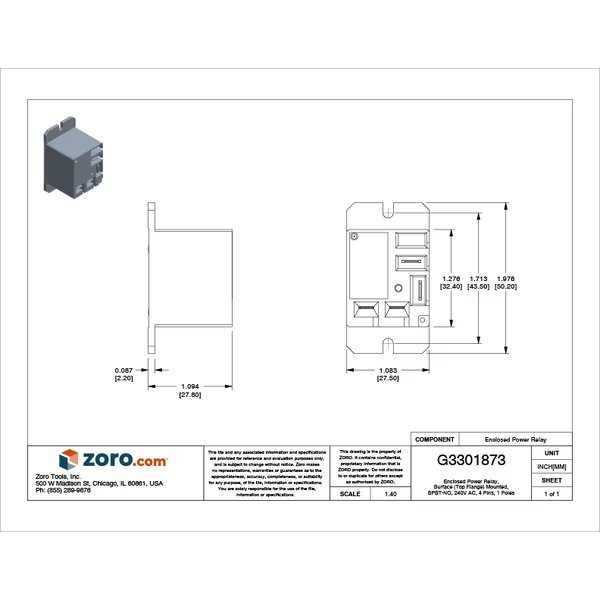

| CAD Available | Yes |
| Item - Relay | Enclosed Power Relay |
| Coil Volts | 240V AC |
| DC Contact Rating - Relay | 30A @ 28V |
| AC Contact Rating - Relay | 30A @ 240V |
| Number of Pins - Relay | 4 |
| Contact Form - Relay | SPST-NO |
| Mounting - Relay | Bottom Flange |
| Power Consumption - Relay | 2.8 VA |
| Contact Material | Silver Alloy |
| Electrical Connection - Power Relay | 1/4 in Tab Terminal |
| Standards | UL60947-4-1 |
| Features | Class F Coil Insulation |
| Pins | 4 |
| HP @ 120V | 1 |
| HP @ 240V | 2 |
| Mounting | Flange, Bottom |
| Hz | 50/60 |
| Contact Form | SPST-NO |
| Contact Amp Rating (Resistive) | 30A @ 240VAC/28VDC |
| Number of Poles | 1 |
| Overall Height - Relay | 1.1 in |
| Body Height - Relay | 1.094 in |
| Hz - Electrical | 50/60 Hz |
| Electrical Connection | Faston Terminal |
| Dimensions | 1.10 |
| Coil Rating | 2.8VA, 1.0W |
| Body Depth - Relay | 1.976 in |
| Body Width - Relay | 1.083 in |
| Item | Enclosed Power Relay |
| Contact Amp Rating (Inductive) | 22A @ 120V AC-8a |
| Series | 9A Power Series |
| Dielectric Strength | 1,500V Between Contacts with Micro Disconnection, 2,500V AC Between Coil and Contact |
| Sealing | Sealed |
| For Use With | Alarm Systems, HVAC Equipment, Motor Controls |
| Horsepower @ 240V AC | 2 hp |
| Input Voltage | 240V AC |
| Mounting Style | Panel Flange |
| Coil Voltage | 240V AC |
| Minimum Operating Temperature | -40 Degrees F |
| Overall Depth | 1.09 in |
| Power Consumption | 2.6 VA |
| Resistance Properties | Shock-Resistant, Vibration-Resistant |
| Weight | 1.12 oz |
| Body Width | 1.083 in |
| Base Type | Flange |
| Mechanical Operating Durability | 10,000,000 |
| Motor Rated | Yes |
| Maximum Operating Temperature | 104 Degrees F |
| Frequency | 50/60 Hz |
| Body Depth | 1.976 in |
| Contact Rating (DC) | 30 A @ 28V |
| Horsepower @ 120V AC | 1 hp |
| Body Height | 1.094 in |
| Maximum Switching Voltage | 277V AC, 28V DC |
| Contact Rating (AC) | 10 A @ 277V, 22 A @ 20V, 24 A @ 240V, 30 A @ 240V, 98 A @ 120V |
| Coil Resistance | 13,490 ohm |
| Response Time | 20 msec |
| Electrical Operating Durability | 100,000 |
| Operating Current | 10 A at 277V (Ballast), 22 A at 20V AC (Full Load), 24 A at 240V AC (Resistive Load), 30 A at 240V AC, 30 A at 28V DC (Resistive Load), 98 A at 120V AC (Locked Rotor) |
| Number of Pins | 4 |
| Switching Voltage | 277 V AC || 28 V DC |
| Mounting Type | panel flange |
| Protection Category | RT III |
| Dielectric Voltage | 2500 V AC between coil and contact || 1500 V between contacts with micro disconnection |
| Operating Temp. Range | -40-40Β°C |
| Current Rating | 30 A |
| Connections Terminals | Faston terminals contact terminal AWG 12...AWG 10, connection size: 6.35 x 0.8 mm; Faston terminals coil terminal AWG 22...AWG 14, connection size: 4.8 x 0.5 mm |
| Rated Power in HP | 1 hp at 125 V AC; 2 hp at 250 V AC |
| Electrical Durability | 100000 cycles, 30 A at 240 V, AC-1; 50000 cycles for resistive load, 30 A at 28 V, DC; 100000 cycles for resistive load, 24 A at 240 V, AC; 30000 cycles for full load, 22 A at 120 V, AC-8a; 1000 cycles for motor load; 6000 cycles for ballast load, 10 A at 277 V, AC-5a |
| Depth | 1.09 in (27.8 mm) |
| Pollution Degree | 3 |
| Rated Operational Current | 30 A at 240 V AC-1; 30 A at 28 V DC (on resistive load); 24 A at 240 V AC (on resistive load); 98 A at 120 V AC-8a (locked rotor); 22 A at 120 V AC-8a (full load); 10 A at 277 V AC-5a (ballast) |
| Network Frequency | 50-60 Hz |
| Height | 1.97 in (50 mm) |
| ambient temperature range - operational | -40 to 104Β°F (-40 to 40Β°C) |
| Product Certifications | UL |
| Vibration Resistance | +/- 0.75 mm 10 to 55 Hz operating; +/- 0.75 mm 10 to 55 Hz not operating |
| Mechanical Durability | 10000000 cycles |
| Ambient Temperature Range - Storage | -40 to 185Β°F (-40 to 85Β°C) |
| Shock Resistance | 10 gn operating; 100 gn not operating |
| Rated Impulse Withstand Voltage | 4 kV 1.2/50Β΅s |
| Rated Power in VA | 470 VA at 240 V on pilot duty |
| Switch Function | SPST |
| Contact Composition | NO |
| Drop-out Voltage Threshold | u003e= 0.2 Uc |
| Contacts Material | Silver alloy contacts |
| Average Resistance | 13490 Ohm at 73Β°F (23Β°C) +/- 10 % |
| Operate Time | 20 ms |
| Operating Position | Any position |
| Product Range | Harmony |
| Rated Insulation Voltage | 320 V |
| [Uc] control circuit voltage | 240 V AC 50-60 Hz |
| Width | 1.07 in (27.3 mm) |
| Release Time | 10 ms |
| Control Circuit Voltage Limits | 0.85...1.1 Uc |
| Minimum Switching Capacity | 5 W at 1 A, 5 V DC; 12 VA at 1 A, 12 V AC |
| Product Type | Power relay |
| Status Indicator | No Indicator |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
Enclosed Power Relay, Surface (Top Flange) Mounted, SPST-NO, 240V AC, 4 Pins, 1 Poles, Schneider Electric, Mfr#: 9AS3A240
$13.69
Free shipping will be applied on orders over $50
Enclosed Power Relay, Coil Voltage 240V AC, Contact Form SPST-NO, Current Rating 30 A, Electrical Connection Faston Terminal, Number of Pins 4, Sealing Sealed, Status Indicator No Indicator, Contact Rating (AC) 10 A @ 277V, 22 A @ 20V, 24 A @ 240V, 30 A @ 240V, 98 A @ 120V, Contact Rating (DC) 30 A @ 28V, Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 2 hp, Mounting Style Panel Flange, Body Depth 0.11 in, Body Height 1.97 in, Body Width 1.08 in, Coil Resistance 13,490 ohm
9999 in stock
