Item - Relay

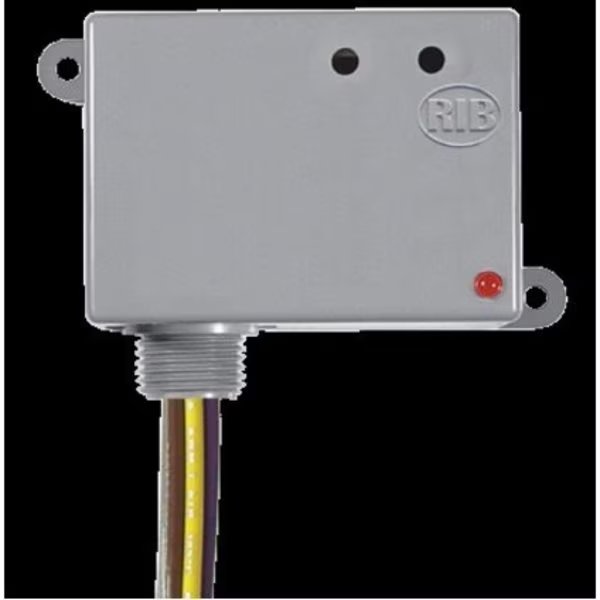

Prewired Relay
Application - Prewired Relay
Power
AC Contact Rating - Relay
20A @ 300V
DC Contact Rating - Relay
20A @ 28V
Mounting - Relay
1/2 in Nipple, Surface
Power Consumption - Relay
1.3W, 3.3VA
Contact Amp Rating (Resistive)
20A @ 300VAC, 20A @ 28VDC
Overall Height - Relay
2.3 in
Body Height - Relay
2.3 in
Contact Material
Gold Flashed Silver Cadmium Oxide
Item
Enclosed Pre-Wired Relay
Features
1/2 in NPT Nipple, 16 in Wire Leads, LED Indicator, Power Relay
Hz - Electrical
50 Hz, 60 Hz
Standards
CE Certified, CSFM, RoHS Compliant, UL 864, UL 916, UL Listed
For Use With
Exhaust Fans, Motors, Vacuums
Contact Rating (AC)
15 A @ 600V, 20 A @ 277 to 480/300V
Maximum Operating Temperature
140 Degrees F
Power Consumption
1.3 W, 3.3 VA
Contact Rating (DC)
20 A @ 28V
Operating Current
20 A at 24V AC/DC
Mechanical Operating Durability
10,000,000
Status Indicator
LED Indicator
Minimum Operating Temperature
-30 Degrees F
Relay Status
LED, ON - relay activated
Life Rating
10 million cycles minimum mechanical
Approvals
UL listed, UL 916 Energy Management, UL 864 Fire, cUL listed, CSFM, UL File S7312
Operating Humidity
5% to 95% non-condensing
Operating Temperature
-30° to 140°F(-34° to 60°C)
Country of Origin (subject to change)
United States
