| Property | Value |
|---|---|
| Item | Enclosed Relay,20A,DPDT,Polarized |
| Voltage | 24 Vac/dc |
| Width | 3.2 |
| Color | Gray |
| Height | 1.8 |
| Dimensions | A and G size enclosures: 2.3 |
| Contact Type | 1-DPDT |
| Type | Plastic Box |
| Function Type | Polarized |
| Operating Humidity | 5% to 95% non-condensing |
| Operating Temperature | -30Β° to 140Β°F(-34Β° to 60Β°C) |
| LCD | Surface |
| Mounting Type | Surface |
| Approvals | UL listed, UL 916 Energy Management, UL 864 Fire, cUL listed, CSFM, UL File S7312 |
| Relay Status | LED, ON - relay activated |
| Conduit Hub | 1/2 |
| Contact Rating | 20A |
| Accessory | Gold Flash |
| Frequency | 50/60 Hz |
| Feature | LED |
| Wire Length | 16 |
| Housing Rating | NEMA 1 |
| Coil Voltage | 24 VAC, 24 VDC |
| Life Rating | 10 million cycles minimum mechanical |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

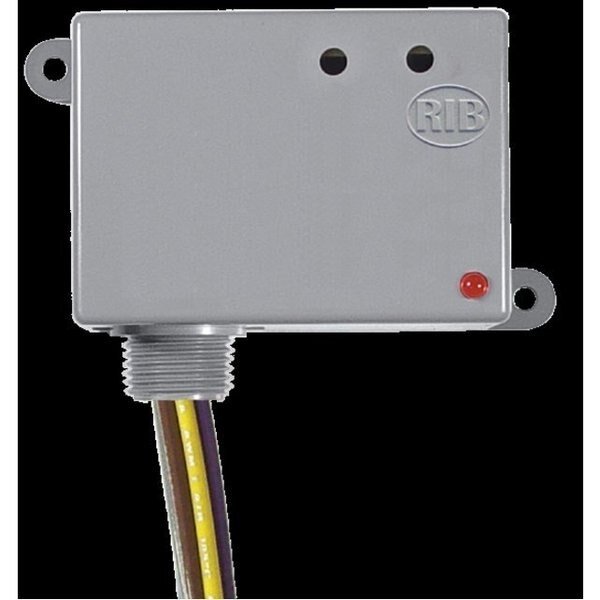

Enclosed Relay, 20A, DPDT, Polarized, Functional Devices-Rib, Mfr#: RIB24P-FA
$78.99
Free shipping will be applied on orders over $50
Polarized Relay, 20 Amp DPDT, 24 Vac/dc Coil, NEMA 1 Housing
9999 in stock
Subtotal:
$78.99
