Width | 14 in |
Height | 16 in |
Depth | 6 in |
Material | Carbon Steel |
NEMA Rating | 12, 13 |
Color | Gray |
Standards | CSA Certified, cUL, IEC, UL Listed |
Finish | ANSI 61 Polyester Powder |
Knockouts / No Knockouts | No Knockouts |
Mounting | Wall |
Enclosure Cover Type | Hinged |
Item | Enclosure |
Features | Weld Nuts for Mounting Panel and Terminals |
Enclosure Cover Features | Clamps |
IP Rating | 65 |
Basic Material | Metallic |
Enclosure NEMA Rating | 12, 13 |
Item - Electrical Enclosure | Enclosure |
Series | A51CH |
Metallic / Non-Metallic | Metallic |
Closure Method | Screwdown Clamps |
Knockouts | No |
Metal Gauge | 14/16 ga |
Gasket | Neoprene |
Material of Enclosure | Carbon Steel |
Nominal Enclosure Width | 14 in |
Solid / Clear Cover | Solid |
Interior Panel | 32FR69 |
Type | Type 13 |
Length | 17.70 inch |
Width (In.) | 14 |
Conductive Panel | A16P14G |
Thickness | 14 ga / 1.9 mm |
Protection Rating | NEMA Type 12, IP65 |
Panel Size | 14.75 x 12.88 in / 375 x 327 mm |
Overall Dimensions | 17.50 x 14.94 in / 445 x 379 mm |
Panel | A16P14 |
Country of Origin (subject to change) | Mexico |
Package Quantity | 1 |

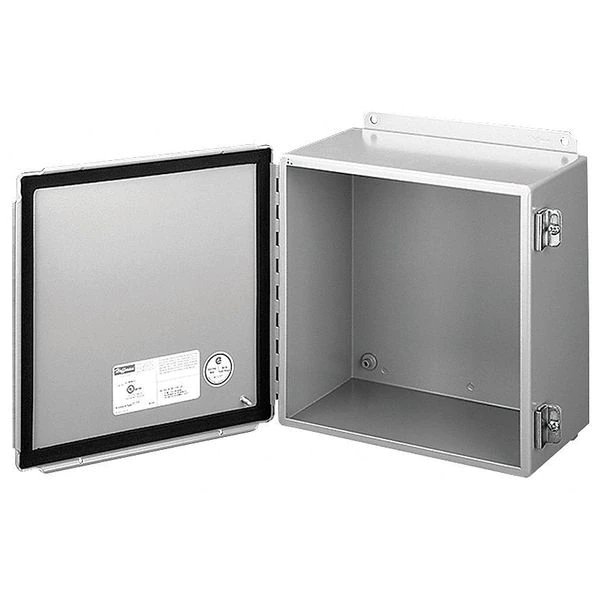

NEMA 12, 13 16.0 in H x 14.0 in W x 6.0 in D Wall Mount Enclosure, NVENT HOFFMAN, Mfr# A1614CH
$278,99
Free shipping will be applied on orders over $50
Enclosure NEMA Rating 12, 13, Material of Enclosure Carbon Steel, 14 in, Hinged Enclosure Cover Type, Solid / Clear Cover Solid, Closure Method Screwdown Clamps, Finish ANSI 61 Polyester Powder, Color Gray, Depth 6 in, Enclosure Cover Features Clamps, Features Weld Nuts for Mounting Panel and Terminals, Neoprene Gasket, Height 16 in, Interior Panel 32FR69, IP Rating 65, Metal Gauge 14/16 ga, Wall Mounting, Series A51CH, Standards CSA Certified, cUL, IEC, UL Listed, Width 14 in
9999 in stock
Must order in multiples of 1
Subtotal:
$278.99
