| Item | Exhaust Valve |
| Height (In.) | 1 31/32 in |
| Length (In.) | 2 1/8 in |
| Body Material | Brass |
| Width (In.) | 1 43/64 in |
| Port Size (In.) | 1/4 in |
| Max. Operating PSI | 150 |
| Max. Temp. Range (F) | 0 to 160 |
| Air Outlet Gender | Female |
| Air Inlet Type | NPT |
| Minimum Operating Pressure | 4.35 psi |
| Air Outlet Type | NPT |
| Standards | REACH, RoHS Compliant, ISO 5598 |
| Maximum Operating Pressure | 145 psi |
| Maximum Operating Temperature | 176 Degrees F |
| Inlet Gender | Female |
| Body Material Finish | Nickel Plated |
| Inlet Size | 1/4 in |
| Air Outlet Size | 1/4 in |
| Minimum Operating Temperature | -4 Degrees F |
| Country of Origin (subject to change) | Italy |
| Package Quantity | 1 |

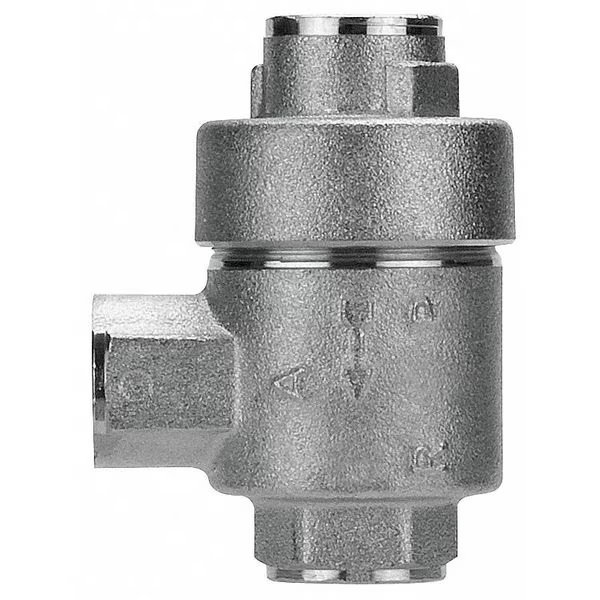

Exhaust Valve, FNPT, Pipe Size 1/4, AIGNEP USA, Mfr# 82650-04
$22,99
Free shipping will be applied on orders over $50
Exhaust Valve, Maximum Operating Pressure 145 psi, Minimum Operating Pressure 4.35 psi, Inlet Size 1/4 in, Air Inlet Type NPT, Air Outlet Size 1/4 in, Air Outlet Type NPT, Inlet Gender Female, Air Outlet Gender Female, Body Material Finish Nickel Plated, Maximum Operating Temperature 176 Degrees F, Minimum Operating Temperature -4 Degrees F, Standards REACH, RoHS Compliant, ISO 5598, Body Material Brass, Overall Width 1 11/16 in, Overall Length 2 1/8 in, Overall Height 2 in
9999 in stock
Must order in multiples of 1
Subtotal:
$22.99
