Thickness Range (In.)
0.001 to 0.030
Material
High Carbon Spring Steel
Thickness (mm)
0.025mm 0.038mm 0.051mm 0.076mm 0.102mm 0.127mm 0.152mm 0.178mm 0.203mm 0.229mm 0.254mm 0.305mm 0.356mm 0.381mm 0.406mm 0.457mm 0.508mm 0.559mm 0.635mm 0.762mm
Meets/Exceeds
FED-GGG-G-17C

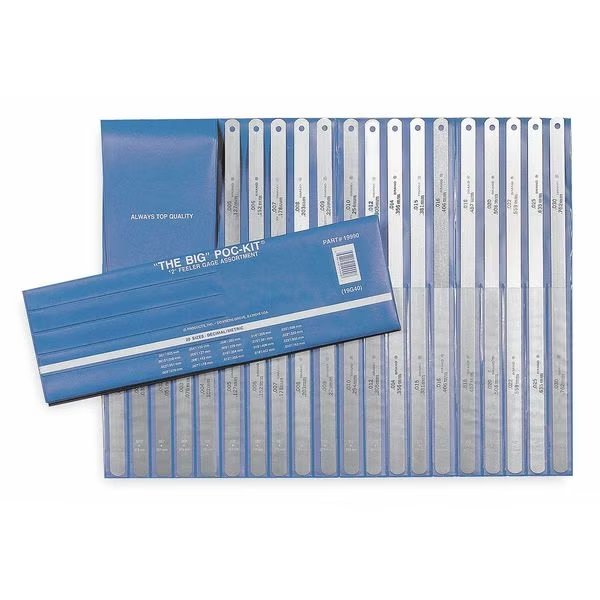

Includes
1 of Each Thickness: 0.001 in /0.025mm, 0.0015 in /0.038mm, 0.002 in /0.051mm, 0.003 in /0.076mm, 0.004 in /0.102mm, 0.005 in /0.127mm, 0.006 in /0.152mm, 0.007 in /0.178mm, 0.008 in /0.203mm, 0.009 in /0.229mm, 0.010 in /0.254mm, 0.012 in /0.305mm, 0.014 in /0.356mm, 0.015 in /0.381mm, 0.016 in /0.406mm, 0.018 in /0.457mm, 0.020 in /0.508mm, 0.022 in /0.559mm, 0.025 in /0.635mm, and 0.030 in /0.762mm, Vinyl Case
Thickness (In.)
0.001 in 0.0015 in 0.002 in 0.003 in 0.004 in 0.005 in 0.006 in 0.007 in 0.008 in 0.009 in 0.010 in 0.012 in 0.014 in 0.015 in 0.016 in 0.018 in 0.020 in 0.022 in 0.025 in 0.030 in
Application
Used in Manufacturing and Maintenance Operations, Wherever Setting Close Spacing or Checking Extremely Tight Tolerances is Required
Markings
Inch with Metric Equivalent
Dimension Type
Inch/Metric
Maximum Thickness - mm
0.762 mm
Blade Style
Straight Blade
Maximum Thickness - Inch
0.025 in
Minimum Thickness - Inch
0.001 in
Included Blades
0.001 in/0.025 mm, 0.0015 in/0.038 mm, 0.002 in/0.051 mm, 0.003 in/0.076 mm, 0.004 in/0.102 mm, 0.005 in/0.127 mm, 0.006 in/0.152 mm, 0.007 in/0.178 mm, 0.008 in/0.203 mm, 0.009 in/0.229 mm, 0.01 in/0.254 mm, 0.012 in/0.305 mm, 0.014 in/0.356 mm, 0.015 in/0.381 mm, 0.016 in/0.406 mm, 0.018 in/0.457 mm, 0.02 in/0.508 mm, 0.022 in/0.559 mm, 0.025 in/0.635 mm, and 0.03 in/0.762 mm
Number of Feeler Blades
20
Minimum Thickness - mm
0.025 mm
Thickness Range
0.001 in to 0.03 in
Included Certification
Certificate of Conformance
Tolerance
0.001 in-0.0015 in +/-0.00012 in; 0.002 in +/-0.00016 in; 0.0025 in-0.0004 in +/-0.00024 in; 0.007 in +/-0.00028 in; 0.008 in-0.009 in +/-0.0032 in; 0.010 in-0.012 in +/-0.00035 in; 0.013-0.015 in +/-0.00043; 0.016-0.019 in +/-0.00047; 0.020-0.024 in +/-0.00055 in; 0.025 in-0.031 in +/-0.00067 in; 0.032 in-0.034 in +/-0.00075 in; 0.040 in +/-0.00094; 0.050 in +/-0.0005 in0. Width 0.500 in +/-0.005 in
Country of Origin (subject to change)
United States
