Thickness Range (In.)
0.001 to 0.030
Thickness (In.)
0.001 in 0.0015 in 0.002 in 0.003 in 0.004 in 0.005 in 0.0075 in 0.010 in 0.0125 in 0.015 in 0.020 in 0.025 in 0.030 in
Includes

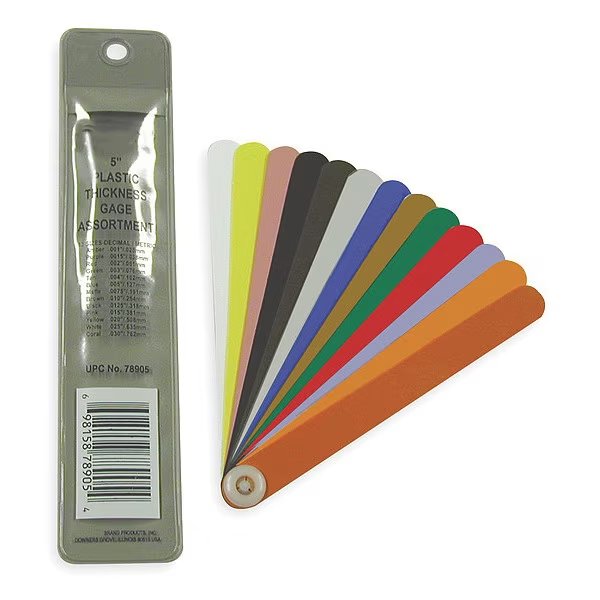

1 of Each Thickness: 0.001 in /0.025mm/Amber, 0.0015 in /0.038mm/Purple, 0.002 in /0.051mm/Red, 0.003 in /0.076mm/Green, 0.004 in /0.102mm/Tan, 0.005 in /0.127mm/Blue, 0.0075 in /0.191mm/Matte, 0.010 in /0.254mm/Brown, 0.0125 in /0.318mm/Black, 0.015 in /0.381mm/Pink, 0.020 in /0.508mm/Yellow, 0.025 in /0.635mm/White, and 0.030 in /0.762mm/Coral, Fan Blade with Vinyl Case
Color
Amber, Purple, Red, Green, Tan, Blue, Matte, Brown, Black, Pink, Yellow, White, Coral
Thickness (mm)
0.025mm 0.038mm 0.051mm 0.076mm 0.102mm 0.127mm 0.191mm 0.254mm 0.318mm 0.381mm 0.508mm 0.635mm 0.762mm
Markings
Inch with Metric Equivalent
Application
Used in Manufacturing and Maintenance Operations, Wherever Setting Close Spacing or Checking Extremely Tight Tolerances is Required
Maximum Thickness - mm
0.762 mm
Thickness Range
0.001 in to 0.03 in
Included Blades
0.0015 in/0.038 mm/Purple, 0.002 in/0.051 mm/Red, 0.003 in/0.076 mm/Green, 0.004 in/0.102 mm/Tan, 0.005 in/0.127 mm/Blue, 0.0075 in/0.191 mm/Matte, 0.01 in/0.254 mm/Brown, 0.0125 in/0.318 mm/Black, 0.015 in/0.381 mm/Pink, 0.02 in/0.508 mm/Yellow, 0.025 in/0.635 mm/White, 1 of Each Thickness: 0.001 in/0.025 mm/Amber, and 0.03 in/0.762 mm/Coral
Maximum Thickness - Inch
0.030 in
Number of Feeler Blades
13
Minimum Thickness - mm
0.025 mm
Blade Style
Straight Blade
Minimum Thickness - Inch
0.001 in
Dimension Type
Inch/Metric
Tolerance
Thickness +/-5%; Length +/-0.030 in;Width +/-0.015 in
Included Certification
Certificate of Conformance
Country of Origin (subject to change)
United States
