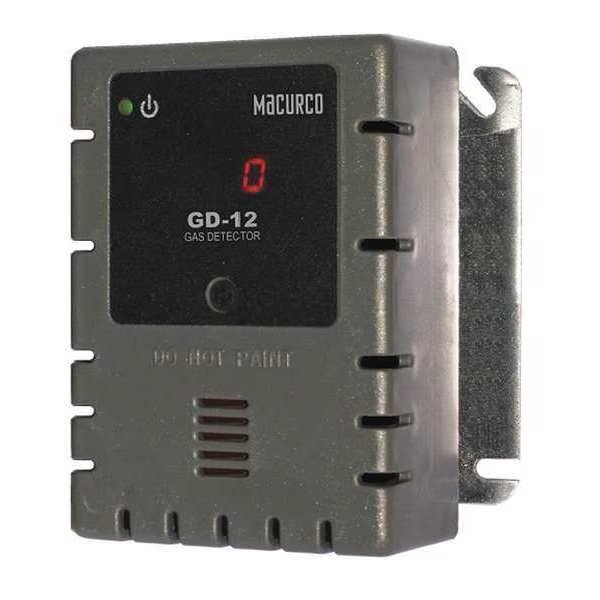

Fixed Gas Detector, CH4, C3H8, H2, Digital, Macurco, Mfr#: GD-12

Name: Fixed Gas Detector, CH4, C3H8, H2, Digital, Macurco, Mfr#: GD-12
Brand: Macurco
SKU: GRG0461590
Price: 611.99 USD
Availability: inStock

Fixed Gas Detector, For Use With Building Automation Systems, Burglary Alarm Panels, Fire Alarm Panels, 36CF90, 48GT51, 48GT52, Gas Detected Hydrogen, Methane, Propane, Standards cETLus Certified, Includes Manual, Product Type Stand-Alone Detector & Controller or Transducer, Mounting Location Wall, Number of Relays 2, Sensor Type Catalytic, Visual Alert Type Green LED, Display Type Digital, Operating Temperature – Minimum -4 Degrees F, Operating Temperature – Maximum 122 Degrees F

SKU: GRG0461590

Manufacturer: GD-12

UPC: 051135890387

Brand: Macurco

Category: Fixed Gas Detectors

$611.99

🚚 Free shipping will be applied on orders over $50

✓ In stock

Minimum order: 1 piece

Subtotal:

$611.99

Final shipping and tax calculated in checkout

Availability: Ships in 1 day

Item

Fixed Gas Detector

For Use With

Building Automation Systems, Burglary Alarm Panels, Fire Alarm Panels, 36CF90, 48GT51, 48GT52

Operating Temp. Range

0 Degrees to 125 Degrees F (-18 Degrees to 52 Degrees C)

Sensor Range

0 to 50% LEL

Features

Selectable Target Gas and Relay Actuation Settings

Resolution

1% LEL

Includes

Manual

Status Indicator

LED

Depth

2 1/8 in

Power Required

100 to 240V AC (50 to 60 Hz)

Alarm Type

Audible and Visual

Height

4 1/2 in

Connection

Plugs/Terminals

Display

LED

Number of Channels

Standards

cETLus Certified

Width

4 in

Gas Type

C3H8, CH4, H2

Color

Gray

IP Rating

Not Rated

Product Type

Stand-Alone Detector u0026 Controller or Transducer

Chemical Formula

C3H8, CH4, H2

Number of Digits

Manufacturer Warranty Length

2 yr

Operating Humidity - Maximum

90 %

Series

Commercial Series

Number of Relays

Operating Temperature - Minimum

-4 Degrees F

Visual Alert Type

Green LED

Overall Height

4.5 in

Alert Type

Internal Buzzer

Overall Width

2.12 in

Operating Temperature - Maximum

122 Degrees F

Output Type

Analog

Gas Detected

Hydrogen, Methane, Propane

Display Screen Type

LED

Input Current

1.0 A

Sensor Type

Catalytic

Operating Frequency

50 to 60 Hz

Sensor Life

5 yr

Ties Into

Building Automation Panels, Fire Alarm Panels

Market

Commercial

Display Type

Digital

Number of Gases Detected

Output Current

4 to 20 mA

Output Channels

Interchangeable Sensors

Operating Humidity - Minimum

10 %

NEMA Enclosure Rating

Not Rated

Mount Type

Bolts/Screws

Coverage Area

900 sq ft

Power Source

Hardwired

Sub-Brand

Macurco

For Environment

Hazardous Locations

Measurement Range

Propane Methane Hydrogen (0 to 50% LEL)

Overall Depth

4 in

Alarm Setting Adjustment

Adjustable Alarm Setting

Housing Color

Gray

Country of Origin (subject to change)

United States

Package Quantity
