| Item | Full Face Flange Gasket |
| Pipe Size | 10 in |
| Outside Dia. | 15 29/32 in |
| Bolt Holes | 12 |
| Inside Dia. | 9 51/64 in |
| Metal Detectable | No |
| Material of Construction | EPDM |
| Thickness | 5/64 in |
| Flange Class | Class 150 |
| Color | Black |
| Product Type | Flange Gasket |
| Continuous Max. Temp. (F) | 195 Degrees F |
| Width | 0.0781 in |
| Temp. Range (F) | -40 Degrees to 195 Degrees |
| Type | ANSI 150 lb Gasket |
| Bolt Hole Diameter | 1 in |
| For Flange ANSI Class | 150 |
| Binder Material | None |
| Number of Bolt Holes | 12 |
| FDA Approved | No |
| Insert Material | EPDM |
| Metal Detectable Gasket | No |
| Included Fasteners | Not Applicable |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |

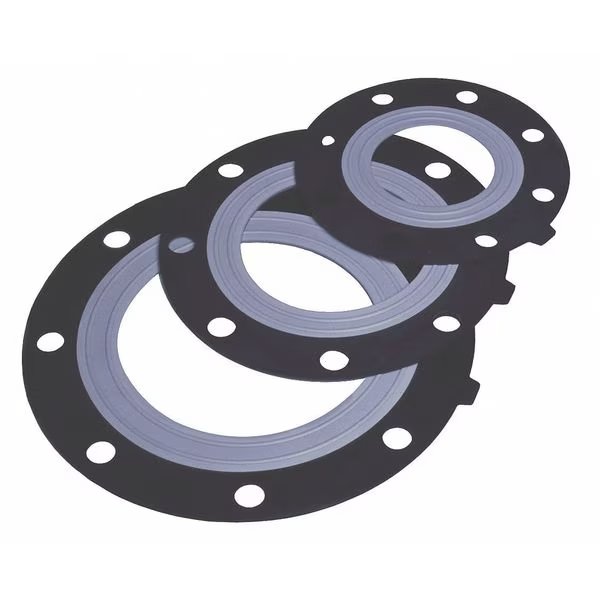

Flange Gasket, 9-51/64" Inside Dia., Black, ASAHI, Mfr# 3113100
$30,49
-3% / ea
with subscription
Free shipping will be applied on orders over $50
Full Face Flange Gasket, Gasket Material EPDM, Insert Material EPDM, For Pipe Size 10 in, For Flange ANSI Class 150, Binder Material None, Color Black, Inside Diameter 10 3/4 in, Minimum Operating Temperature -40 Degrees F, Maximum Operating Temperature 195 Degrees F, Outside Diameter 15 29/32 in, Thickness 5/64 in, Number of Bolt Holes 12, Bolt Hole Diameter 1 in, Gasket Type Full-Face Gasket, Metal Detectable Gasket No, Included Fasteners Not Applicable, Hardness Shore 65 to 70 A
9999 in stock
Must order in multiples of 1
Subtotal:
$30.49
