| Item | Electronic Flowmeter |
| Housing Material | Stainless Steel |
| For Pipe Size | 1 1/2 to 2 in |
| Flow Material | Conductive Media |
| Connection Size | 2 in |
| Connection Type | BSPP |
| Max. Pressure | 232 psi |
| Wetted Materials | 316L Stainless Steel, FKM, PEEK |
| Max. Viscosity | 370 SUS |
| Flow Range | 1.3 to 80 gpm |
| Fluid Temp. Range | -4 Degrees to 176 Degrees F |
| Flow Range (GPM) | 1.3 to 80 |
| Display Type | LED |
| Sensor Type | Magnetic |
| Fluid Temp. Range (Deg. F) | -4 to 176 |
| Display Units | gal, gph, gpm, Temp |
| Output Type | 4-20 mA |
| Ambient Temperature | 14 Degrees to 140 Degrees F |
| Accuracy (%) | +/-0.8 |
| Fitting Size (In.) | 2 |
| Length (In.) | 7 3/4 in |
| Pressure Rating (PSI) | 232 |
| Seal Material | Stainless Steel |
| Shaft Material | Stainless Steel |
| Standards | CE Certified, CRN, CSA Certified, cULus Listed, EC 1935/2004, IO-Link, UKCA |
| Flow Rate - Maximum | 80 gpm |
| Includes Totalizer | Yes |
| Compatible Flow Material | Conductive Liquids, Water, Water-Like Liquids |
| Unit Of Measure | Gallons |
| Accuracy | +/-0.8% |
| Viscosity - Maximum | 70 SUS |
| Wetted Material | 316L Stainless Steel, Centellen, Viton, PEEK |
| Frequency - Minimum | Not Applicable |
| O-Ring Material | Viton |
| Cable Length | Not Applicable |
| Includes Pressure Gauge | No |
| Frequency - Maximum | Not Applicable |
| Includes Flow Rate Adjustment Knob | No |
| Pulse Rate | 50 pulses/gal |
| Voltage - Maximum | 32V DC |
| Flow Rate - Minimum | 1.3 gpm |
| Media Temperature - Maximum | 158 Degrees F |
| Media Temperature - Minimum | 14 Degrees F |
| Overall Length | 7.8 in |
| Mounting Orientation | Universal |
| Flowmeter Type | Electromagnetic |
| Product Type | Electronic Flowmeter |
| Operating Pressure - Maximum | 232 psi |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |

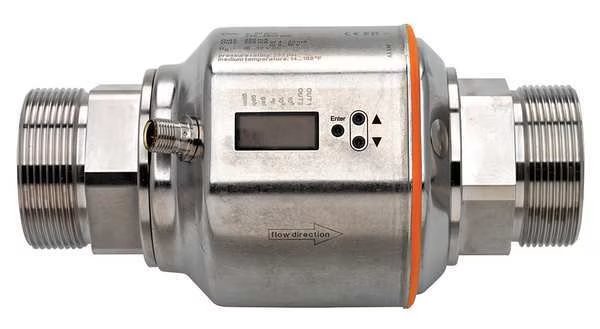

Flow Meter, Magnetic, 80 GPM, IFM, Mfr# SM9001
$1119,99
-$33.6 / ea
with subscription
Free shipping will be applied on orders over $50
Electronic Flowmeter, Product Type Electronic Flowmeter, Flowmeter Type Electromagnetic, Accuracy +/-0.8 Percent, Connection Size 2 in, Connection Type BSPP, Compatible Flow Material Conductive Liquids, Water, Water-Like Liquids, Media Temperature - Maximum 158 Degrees F, Media Temperature - Minimum 14 Degrees F, Viscosity - Maximum 70 SUS, Voltage - Maximum 32V DC, Housing Material Stainless Steel, O-Ring Material Viton, Seal Material Stainless Steel, Shaft Material Stainless Steel
9999 in stock
Must order in multiples of 1
Subtotal:
$1119.99
