Housing Material
Cast Aluminum
Max. Head - Pumps
5 1/2 ft
Duty Cycle
15 Minutes On/30 Minutes Off
Transfer Pump Application
Stationary Installations
Wetted Materials
Not Applicable
Standards
Class I Div 2, cULus Listed, IECEx/ATEX Zone 1
Agency Compliance
Class I Div 2, cULus
Includes

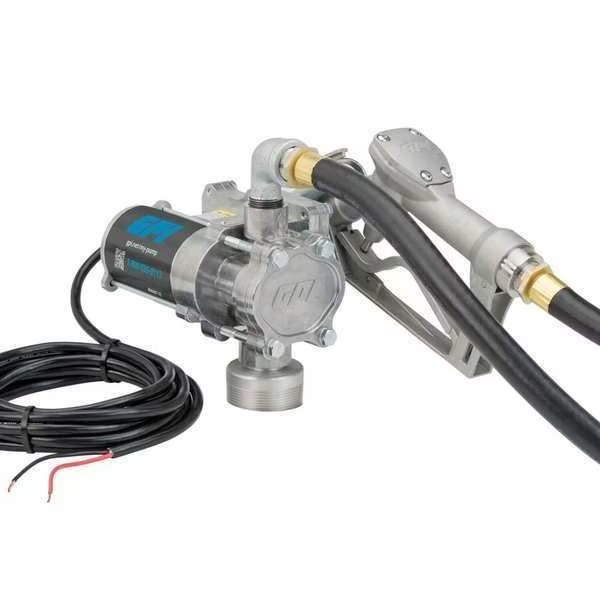

Dispensing Hose with Static Wire, EZ-8 8 gpm Pump with Spin Collar, Factory-Installed Power Cord, Fuse Assembly, Manual Unleaded Nozzle, Street Elbow, Tank Adapter, Telescoping Suction Pipe
For Use With
Diesel, Gasoline, Kerosene, E15
Housing Material - Pumps
Aluminum
Features
Self priming, Powder-coated aluminum body,telescoping suction pipe (15in - 40in), Factory installed power Cord, Explosion Proof Motor, Thermal Overload Protection
Manufacturers Warranty Length
2 yr
Compatible Fluids
Diesel, Gasoline, Kerosene, E15
Motor Enclosure
Explosion Proof
Nozzle Fluid Compatibility
Diesel
Hose Tube Material
Nitrile
For Media Type
Diesel, Gasoline, Kerosene
Max. Fluid Temp.
125 Degrees F
Diesel Exhaust Fluid Compatible
No
Housing Finish
Powder Coated
Compatible Chemicals
Diesel, Gasoline, Kerosene
Min. Fluid Temp.
-20 Degrees F
Includes Discharge Hose
Yes
Meter Unit Of Measure
Not Applicable
For Container Size
5 gal, 55 gal
Height Above Container
10 in
Adapter Connection Type
MNPT
Hose Cover Material
Nitrile
Suction Tube Material
Polypropylene
Max. Outlet Pressure
15 psi
Discharge Connection Type
FNPT
Filter Included
Not Applicable
Country of Origin (subject to change)
United States
