| Voltage | 115V AC |
| Application | Designed for Gasoline, Diesel, Biodiesel Up to B20, E15, Kerosene and Mineral Spirit |
| HP | 1/6 |
| Housing Material | Cast Iron |
| GPM | 15 gpm |
| Inlet Size | 1 in NPT |
| Seal Material | Carbon |
| RPM | 2000 |
| Pump Design | Rotary Vane |
| Self-Priming | Yes |
| Seal Type | Mechanical |
| Max. Viscosity | 50 SUS |
| Item | Fuel Transfer Pump |
| Features | Iron Rotor with Carbon Rotary Vanes, Pressure Relief Valve, Self Priming |
| Overall Length | 11 in |
| Manufacturers Warranty Length | 2 yr |
| Overall Width | 13 in |
| Pump Mount Size | 2 in |
| Transfer Pump Application | Agriculture, Construction, Farming |
| Compatible Fluids | Biodiesel up to B20, Diesel, E15, Gasoline, Kerosene |
| For Use With | Bio-Diesel up to B20 E15. Kerosene, Diesel, Gasoline |
| Outlet Size | 3/4 in NPT |
| Bearing Type | Sealed Ball |
| Metered | No |
| Pressure Range | 0 psi to 16 psi |
| Amps AC | 5.5 |
| Overall Height | 8 in |
| Bypass Valve | Yes |
| Duty Cycle | 30 Minutes On/30 Minutes Off |
| Standards | UL Listed |
| Wetted Materials | Buna-N, Ceramic, Cork, Stainless Steel, Steel, Thermoset, Viton |
| Hose Length | Not Applicable |
| Motor Type | Permanent Magnet |
| Includes | Installation Components |
| Agency Compliance | cULus |
| Nozzle Material | Not Applicable |
| Motor RPM | 2,000 RPM |
| Max. Head - Pumps | 37 ft |
| Housing Material - Pumps | Cast Iron |
| Hose Cover Material | Not Applicable |
| Includes Discharge Hose | No |
| Mount Type | Bung |
| Hose Outside Dia. | Not Applicable |
| Nozzle Operation | Not Applicable |
| Meter Type | Not Applicable |
| Hose Inside Dia. | Not Applicable |
| Discharge Connection Type | NPT |
| Rated Voltage | 115V AC |
| Max. Outlet Pressure | 16 psi |
| Meter Unit Of Measure | Not Applicable |
| Power Source | Electric |
| Motor HP | 1/6 hp |
| For Container Size | 500 gal |
| Max. Flow Rate | 15 gpm |
| Includes Nozzle | No |
| Hose Tube Material | Not Applicable |
| Compatible Chemicals | Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits |
| Thermal Protection | Yes |
| Runs Dry | Yes |
| Pump Connection Type | NPT |
| Max. Head Pressure | 16 psi |
| Full Load Amps | 2.5 A |
| For Media Type | Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits |
| Filter Included | Not Applicable |
| Nozzle Fluid Compatibility | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

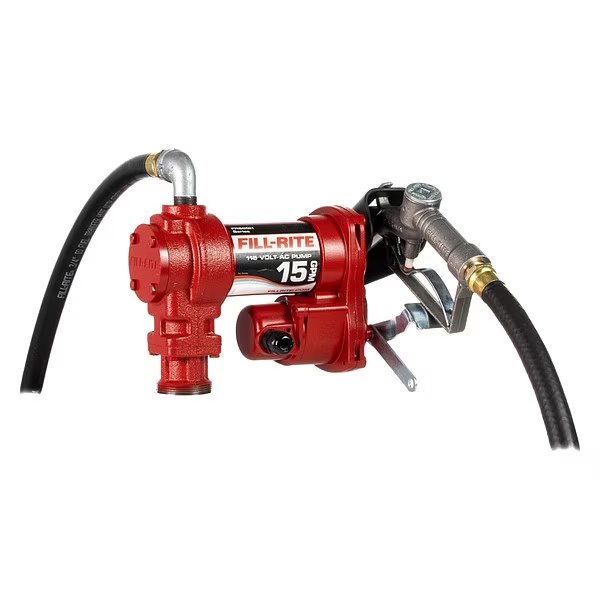

Fuel Transfer Pump, 115VAC, 15 GPM, 1/6 HP, Cast Iron, 1 in. NPT Inlet, FILL-RITE, Mfr# FR604H
-$13.35 / ea
with subscription
Free shipping will be applied on orders over $50
Fuel Transfer Pump, Hose Inside Dia. Not Applicable, Max. Head Pressure 16 psi, Max. Outlet Pressure 16 psi, For Use With Bio-Diesel up to B20 E15. Kerosene, Diesel, Gasoline, Rated Voltage 115V AC, Hose Length Not Applicable, Runs Dry Yes, Nozzle Operation Not Applicable, Thermal Protection Yes, Power Source Electric, Includes Discharge Hose No, Self-Priming Yes, Compatible Chemicals Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits, Discharge Connection Type NPT
9999 in stock
Must order in multiples of 1
Subtotal:
$444.99
You must be logged in to post a review.
-$37.6
with sub
$601.39
Reviews
There are no reviews yet.
