Item | Safety Switch |
Protection Method | Fusible |
Voltage | 240V AC |
Number of Poles | 2 |
Phase | Single |
Contact Form | DPST |
IP Rating | IP14 |
Duty | Heavy Duty |
Number of Wires | 3 |
Neutral Assembly Included | Yes |
Depth | 5 in |
Height | 14 3/4 in |
Standards | EU RoHS, UL listed file E2875 |
Includes | Dual Cover Interlock |
Width | 6 1/2 in |
Includes Interlocked Receptacle | Yes |
Horsepower @ 240V AC | 3 hp |
Number of Locks | 2 |
Maximum Enclosure Depth | 5.11 in |
Enclosure Type | Enclosed |
For Fuse Class | Class H, Class K |
Series | F |
Mounting Style | Surface Mount |
Fuse Kit (Class R) | Mfr. No. RFK03L |
Features | Quick Make/Break Operating Mechanism, Viewing Window |
Number of Mounting Holes | 3 |
Current Rating | 30 A |
Housing Material | Galvannealed Steel |
NEMA Enclosure Rating | 3R |
Wiring Configuration | 3-wire (2P + N) |
Awg Gauge | AWG 12...AWG 6 aluminium || AWG 14...AWG 6 copper |
Series Name | heavy duty |
Tightening Torque | 45-45 lbf.in 13.3-13.3 mm? (AWG 6) || 40-40 lbf.in 8.367-8.367 mm? (AWG 8) || 35-35 lbf.in 2.06-5.261 mm? (AWG 14...AWG 10) |
Short-Circuit Current | 10 kA for H or K || 10 kA for R without fuse rejection clips || 200 kA for R with fuse rejection clips || 200 kA for J |
Device Application | heavy application |
[Ue] Rated Operational Voltage | 250 V DC || 240 V AC |
Condition Of Use | suitable service entrancefor USA || suitable service entrancefor Mexico |
Device Composition | neutral (factory installed) |
Product Certifications | UL listed file E2875 |
Fuse Type | H or K || R or J |
Nema Degree Of Protection | NEMA 3R galvannealed steel |
Disconnector Device Type | fusible disconnect |
Electrical Connection | lugs |
Product Or Component Type | Single Throw Safety Switch |
Device Mounting | surface |
Line Rated Current | 30 A |
Compatible with Manufacturer Model Number | RFK03L |
Horsepower @ 600V AC | Not Rated |
Environment | Indoor/Outdoor |
Horsepower @ 480V AC | Not Rated |
Compatible with Manufacturer Model Number [NEW] | RFK03L |
Handle Color | Black/Red |
Compatible Manufacturer Part Number | RFK03L |
Country of Origin (subject to change) | United States |
Package Quantity | 1 |

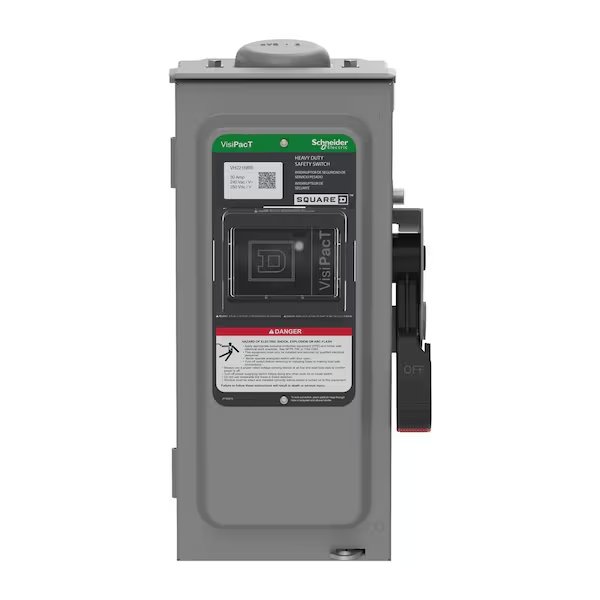

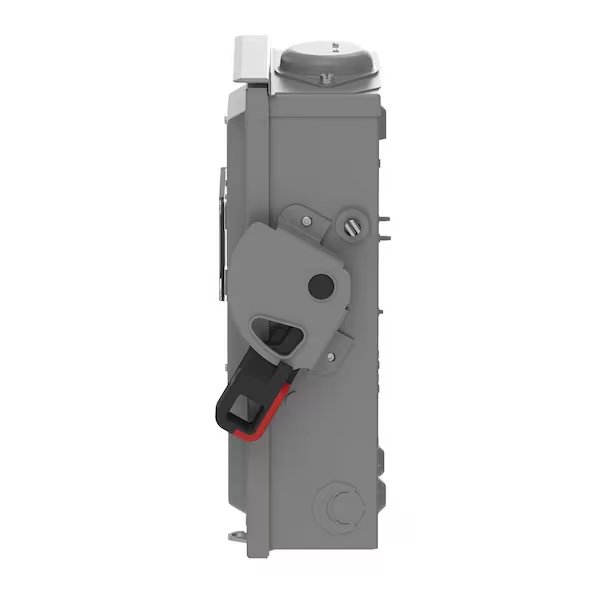

Fusible Safety Switch, 240V AC, 2 pole, SCHNEIDER ELECTRIC, Mfr# VH221NRB
$220,99
Free shipping will be applied on orders over $50
Safety Switch, Compatible with Manufacturer Model Number RFK03L, Contact Form DPST, Current Rating 30 A, Depth 5 in, Duty Heavy Duty, Enclosure Type Enclosed, Environment Indoor/Outdoor, Features Quick Make/Break Operating Mechanism, Viewing Window, For Fuse Class Class H, Class K, Fuse Kit (Class R) Mfr. No. RFK03L, Handle Color Black/Red, Height 14 3/4 in, Horsepower @ 240V AC 3 hp, Horsepower @ 480V AC Not Rated, Horsepower @ 600V AC Not Rated, Housing Material Galvannealed Steel
9999 in stock
Must order in multiples of 1
Subtotal:
$220.99
