Standards
EU RoHS, UL listed file E2875
Includes
Dual Cover Interlock
Neutral Assembly Included
Yes
Mounting Style
Surface Mount
Includes Interlocked Receptacle
Yes
Features

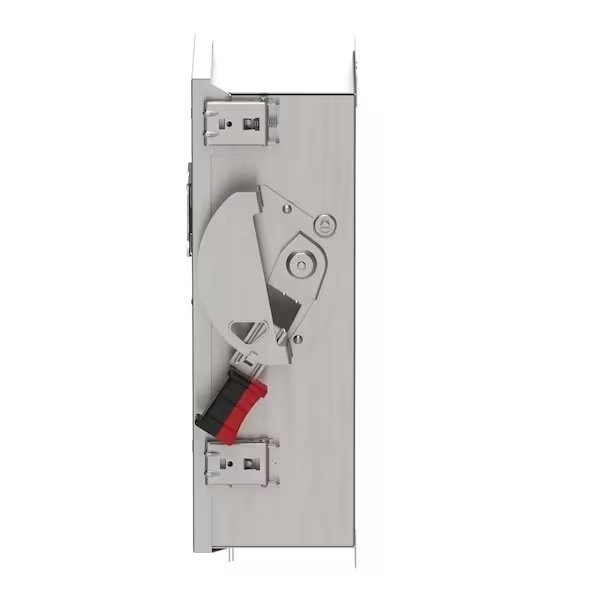

Quick Make/Break Operating Mechanism, Viewing Window
Housing Material
304 Stainless Steel
Fuse Kit (Class R)
Mfr. No. RFK10
Maximum Enclosure Depth
7.26 in
Number of Mounting Holes
6
Resistance Properties
Corrosion-Resistant
For Fuse Class
Class H, Class K
Environment
Indoor/Outdoor
Compatible with Manufacturer Model Number
RFK10
Horsepower @ 480V AC
Not Rated
Horsepower @ 600V AC
Not Rated
Compatible with Manufacturer Model Number [NEW]
RFK10
Compatible Manufacturer Part Number
RFK10
Compatible Manufacturer Model Number
RFK10
For Use with Mfr. Model Number
RFK10
For Use With Mfr. Model Number
RFK10
Product Or Component Type

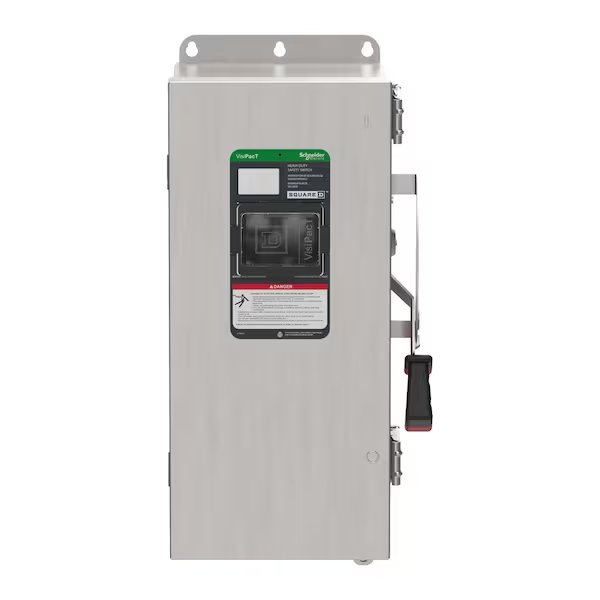

Single Throw Safety Switch
Wiring Configuration
3-wire (2P + N)
Disconnector Device Type
fusible disconnect
Fuse Type
H or K || R or J
[Ue] Rated Operational Voltage
250 V DC || 240 V AC
Device Composition
neutral (factory installed)
Condition Of Use
suitable service entrancefor USA || suitable service entrancefor Mexico
Nema Degree Of Protection
NEMA 4X stainless steel 304
Electrical Connection
lugs
Product Certifications
UL listed file E2875
Device Application
heavy application
Tightening Torque
50-50 lbf.in (AWG 1...AWG 3/0) || 45-45 lbf.in (AWG 6...AWG 4) || 40-40 lbf.in 8.367-8.367 mm² (AWG 8) || 35-35 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10)
Short-Circuit Current
10 kA for H, K, J or R without fuse rejection clips || 200 kA for R with fuse rejection clips || 200 kA for J
Awg Gauge
AWG 12...AWG 1/0 aluminium || AWG 14...AWG 1/0 copper
Country of Origin (subject to change)
United States
