| Item | Grid Coupling Hub |
| Bore Type | Round with Keyway |
| Length through Bore | 2 in |
| Hub Body Length | 2 in |
| Hub Material | Steel |
| Keyway Width | 1/4 in |
| Machinable Bore Range | 1 1/16 to 1 5/8 in |
| Maximum Torque | 2,204 in-lb |
| Standards | AGMA |
| Outside Diameter | 2.25 in |
| Coupling Overall Length | 4.13 in |
| Application | For Limited Space, General Purpose |
| System of Measurement | Inch |
| Hub Diameter | 2 1/4 in |
| Bore Diameter | 1 1/16 in |
| Weight | 2.8 lb |
| Screw Thread Size | M6 |
| Keyway Depth | 1/8 in |
| Maximum Speed | 4,500 RPM |
| Coupling Size | 1040 |
| For Misalignment Type | Angular, Parallel |
| Features | Design Flexibility, Horizontally Split Cover, Stop Lug in Cover Prevents Spinning During Reversing Service |
| Included Screws | Set Screw |
| Country of Origin (subject to change) | Korea, Republic of |
| Package Quantity | 1 |

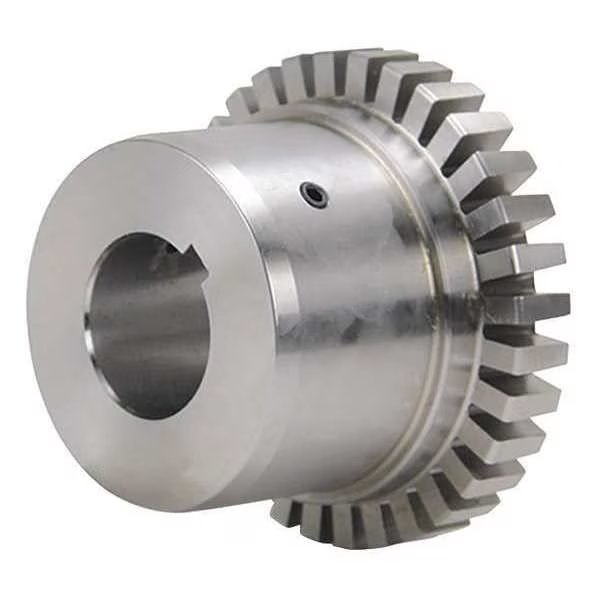

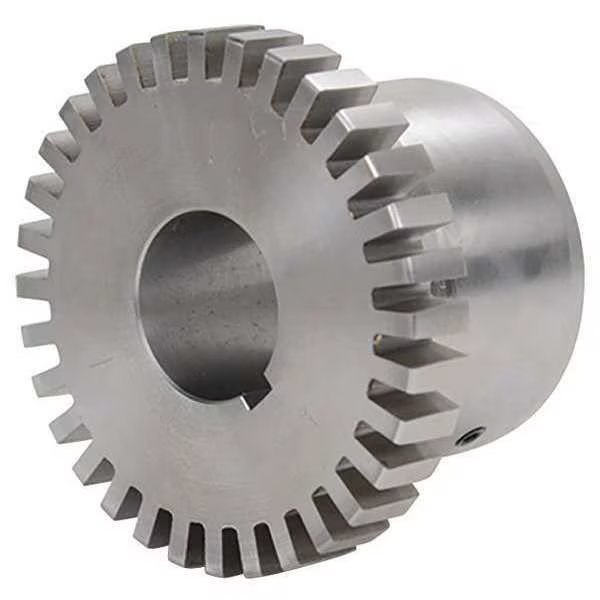

G-Flex Grid Coupling, Hub, 1040T x 1-1/16, TB WOODS, Mfr# 1040T1116
$114,99
Free shipping will be applied on orders over $50
Grid Coupling Hub, System of Measurement Inch, Screw Thread Size M6, Outside Diameter 2.25 in, Features Design Flexibility, Horizontally Split Cover, Stop Lug in Cover Prevents Spinning During Reversing Service, Maximum Torque 2,204 in-lb, For Misalignment Type Angular, Parallel, Included Screws Set Screw, Bore Type Round with Keyway, Application For Limited Space, General Purpose, Maximum Speed 4,500 RPM, Standards AGMA, Bore Diameter 1 1/16 in, Weight 2.8 lb, Length through Bore 2 in
9999 in stock
Must order in multiples of 1
Subtotal:
$114.99
