| Full Load Amps | 6.6 A |
| Motor Thermal Protection | Auto |
| RPM Group | 1701-1800 |
| RPM Range | 1,701-1,800 |
| Motor Enclosure Design | Open Dripproof |
| Motor Service Factor | 1 |
| Phase | Single |
| Motor Design | Split-Phase |
| HP | 1/3 |
| Frame Material | Rolled steel |
| Ins. Class | B |
| Shaft Dia. | 1/2 in |
| Nominal Efficiency | 57.5 % |
| Motor Application | General Application |
| Hz | 60 Hz |
| Voltage Compatibility | 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC |
| Frame | 48Y |
| Length Less Shaft | 7 13/16 in |
| Standards | CSA, UL recognized |
| Duty | Continuous |
| Motor Mounting Type | Cradle Base |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| No. of Speeds | 1 |
| Motor Shaft Rotation | CW/CCW |
| Nameplate RPM | 1,725 |
| Max. Ambient Temp. | 104 Degrees F |
| Shaft Length | 1 7/8 in |
| Item | General Purpose Motor |
| Voltage | 115V AC |
| Motor Mounting Position | Horizontal |
| Usable @ 200V | No |
| Usable @ 208V | No |
| Overall Length | 9 3/4 in |
| Weight | 14 lb |
| Duty Cycle | Continuous |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

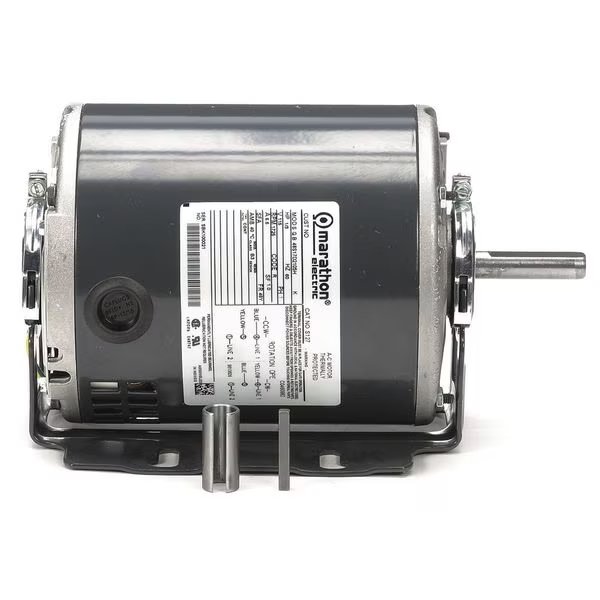

SP Motor, Split-Ph, 60 Hz, 1/3 HP, MARATHON MOTORS, Mfr# 048S17D2105
$193,99
Free shipping will be applied on orders over $50
General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, Full Load Amps 6.6 A, 48Y Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
9999 in stock
Must order in multiples of 1
Subtotal:
$193.99
