| Property | Value |
|---|---|
| Overall Height | 3.25 |
| Overall Length | 29.625 |
| Overall Width | 22.125 |
| Material | Steel |
| Color | Yellow |
| Assembled | Yes |
| Platform Length | 29.625 |
| Size | 29.625 x 22.125 x 3.25 |

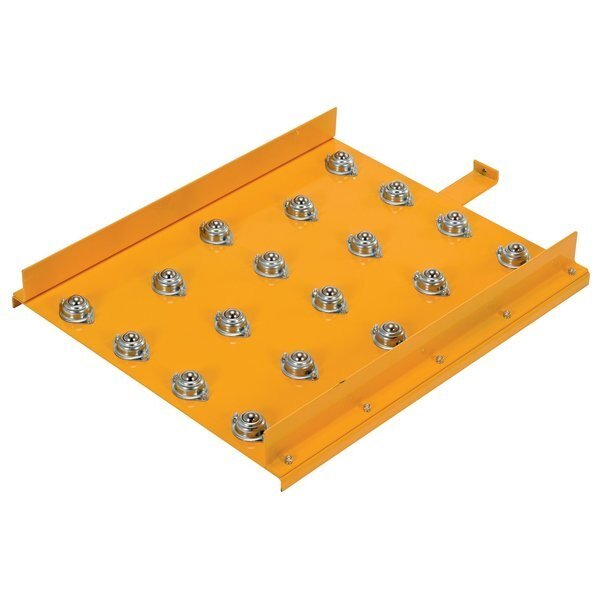

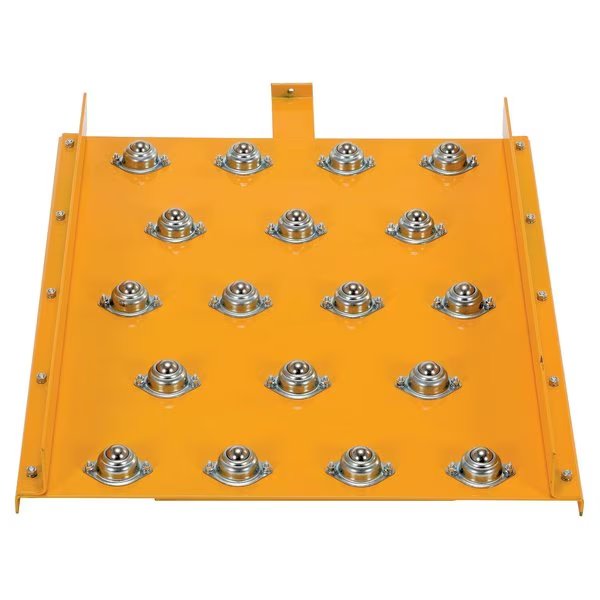

| Includes | Attached are edge guards, 18 transfer balls, and a powder coat finish. |
| Width | 22.125 |
| Features | Open platform for 3 sided use. Smooth design finish for simple cleaning. Easily attachable to unit. Compact for minimal storage space |
| Application | Ball transfer platform for DC powered Hefti-Lifts. |
| Depth | 29.625 |
| Weight | 32 |
| Height | 3.25 |
| Length | 29.625 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
HEFTI-LIFT ATTACH BALL TRANS PLATFORM, Vestil, Mfr#: HYDC-BTP
$521.99
Free shipping will be applied on orders over $50
The Hefti-Lift Stainless Steel units are compact, lightweight, and capable of turning in a small radius when space is limited. A built-in automatic load check valve is included for improved safety. Units provide reliable powerful lifting when moving and positioning loads. The manual hydraulic foot pump yields. The units roll smoothly on two rigid and two swivel poly-on-steel casters with foot operated brake. Each fork is 4."W x 2."H, the fork length is the same as the platform length. Overall fork width is 22". Not for use with pallets. Units simply bolt on to any platform. Chrome 1" diameter ball transfers are on 4" centers with a square pattern. All ball transfers have a chrome finish and can be attached to hydraulic and mechanical tables.
