| Property | Value |
|---|---|
| Item | Live Center |
| Point Type | Standard Point |
| Morse Taper | 4 MT |
| Weight of Workpiece (Lb.) | 1400 |
| Head Dia. | 1.2310 in |
| Thrust Rating (Lb.) | 435 |
| Point Dia. | 5/8 in |
| Accuracy | +/-0.00005 |
| Dimension B (In.) | 1.231 |
| Dimension G (In.) | 0.63 |

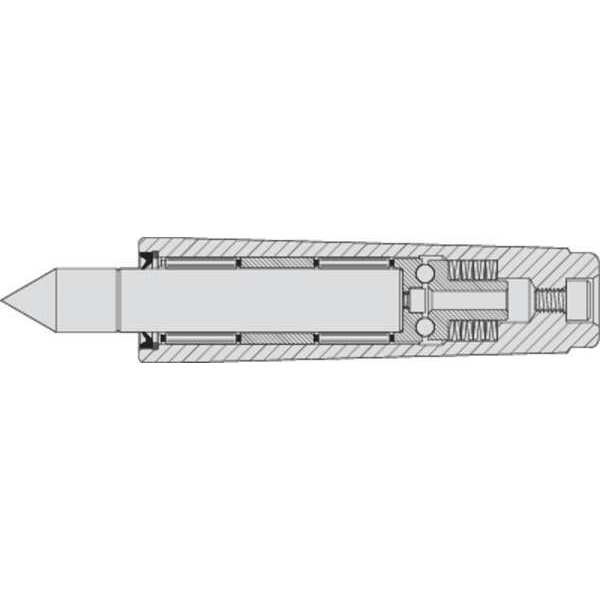

| Bearings | Tri-Bearing Design |
| Included Angle (Deg.) | 60 |
| Max. RPM | 4500 |
| Dimension F (In.) | 1.38 |
| Function | Used to Compensate for Workpiece Thermal Expansion |
| Construction | Steel |
| Features | Can be Used in the Turret of Sub-Spindle Machines to Overcome a Lack of Hydraulic Compensation, Low-Profile Design Provides Outstanding Tool Clearance, Unique Spring-Loaded Point Compensates for Workpiece Thermal Expansion |
| Max. Workpiece Weight | 1,400 lb |
| Point Length | 1.38 in |
| Bearing Type | Dual-Bearing Design |
| Included Angle | 60 Degrees |
| Point Style | Standard |
| Max. Speed | 4,500 RPM |
| Thrust Load | 435 lb |
| Shank Taper Size | MT4 |
| Application | Sub-Spindle Machines |
| Shank Type - Machining | Taper |
| Body Material | High Speed Steel |
| Shank Type | Taper |
| Material | Steel |
| Speed - Maximum | 4,500 RPM |
| Workpiece Weight - Maximum | 1,400 lb |
| Point Diameter | 0.63 in |
| Head Diameter | 1.231 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
HSS Live Center, 4 MT, Standard Point, Royal Products, Mfr#: 10524
$1249.99
Free shipping will be applied on orders over $50
Live Center, Bearing Type Dual-Bearing Design, Point Style Standard, Shank Taper Size MT4, Max. Speed 4,500 RPM, Shank Type - Machining Taper, Head Dia. 1.2310 in, Point Dia. 5/8 in, Max. Workpiece Weight 1,400 lb, Accuracy +/-0.00005 In., Application Sub-Spindle Machines
9999 in stock
