| Property | Value |
|---|---|
| Item | Hoist Ring |
| Mounting Style | Screw-On |
| Series | Heavy Duty(R) |
| Pivot | 180 Degrees |
| Swivel Angle | 360 Degrees |
| Working Load Limit | 4,000 lb |
| Bail Dia. | 3/4 in |
| Thread Size | 5/8 |
| Dimension E | 1 in |
| Installation Torque | 60 ft-lb |
| Dimension B | 3 1/2 in |
| Dimension d | 3/4 in |
| Standards | ANSI/ASME B30.26, MIL-STD-209 |
| Dimension a | 1 in |
| Dimension F | 5 5/16 in |
| Dimension C | 1 1/2 in |
| Dimension D | 3/4 in |
| Dimension A | 1 in |
| Bail Thickness | 3/4 in |
| Mount Type | Screw-On |
| Overall Length | 3 1/2 in |
| Usable Thread Length | 1 in |
| Maximum Operating Temperature | 400 Degrees F |
| Overall Width | 3 1/2 in |
| Operation | Lifting, Pulling |
| Bail Inside Width | 1 7/8 in |
| Material | Alloy Steel |
| Color | Black |
| Bail Inside Length | 2 1/2 in |
| Hardware Included | Removable Bolt |
| Finish | Black Oxide |
| Minimum Operating Temperature | -20 Degrees F |
| Movement Type | Pivot, Swivel |
| Pivot Angle | 180 Degrees |
| Minimum Installation Torque | 60 ft-lb |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

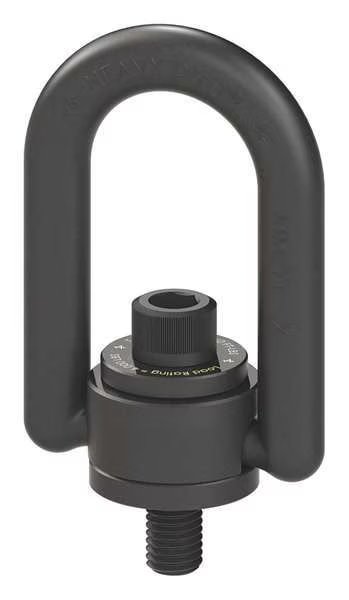

Heavy Duty Hoist Ring, 4000 lb. WLL, Adb Hoist Rings, Mfr#: 33614
$61.03
Free shipping will be applied on orders over $50
Hoist Ring, Movement Type Pivot, Swivel, Material Alloy Steel, Mount Type Screw-On, Working Load Limit 4,000 lb, Thread Size 5/8 In.-11, Operation Lifting, Pulling, Pivot Angle 180 Degrees , Swivel Angle 360 Degrees , Usable Thread Length 1 in, Bail Inside Length 2 1/2 in, Bail Inside Width 1 7/8 in, Bail Thickness 3/4 in, Overall Length 3 1/2 in, Overall Width 3 1/2 in, Hardware Included Removable Bolt, Minimum Installation Torque 60 ft-lb, Finish Black Oxide
9999 in stock
