| Item | Air Curtain |
| Width | 111 in |
| Phase | 1 |
| Max. Mounting Height | 14 ft |
| Air Curtain Finish | Powder Coated |
| Number of Motors | 3 |
| Height | 15 in |
| Air Curtain Air Velocity | 5000 fpm |
| Voltage | 208/230 |
| Air Curtain Air Volume | 7188 cfm |
| Air Curtain Max. Door Width | 9 ft |
| Air Curtain dBA @ 10 Feet | 69 dBA |
| Depth | 18 in |
| Air Curtain Heated | No |
| Air Curtain Housing Material | Steel |
| Hz | 60 |
| Motor HP | 1 hp |
| Requires | Hard Wiring |
| Max. Amps | 19.5/19.5 |
| Air Curtain Item | High Velocity Air Curtain |
| Standards | AMCA Certified, UL Listed |
| Motor Enclosure | Open Dripproof |

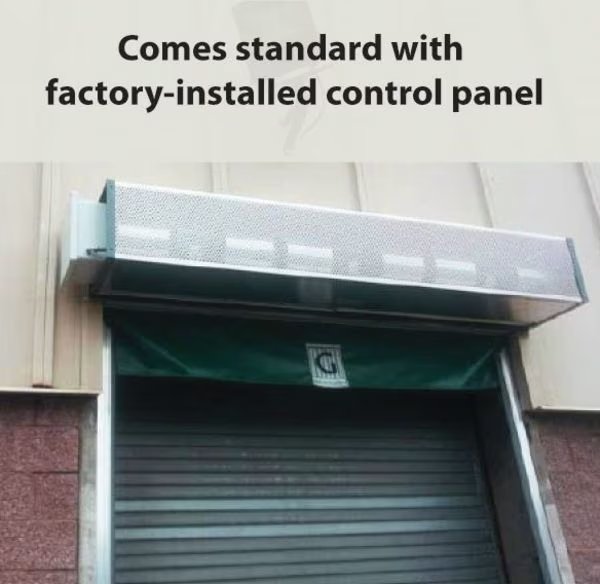

| Includes | Activation Switch, Factory Mounted Control Panel |
| Number of Speeds | 1 |
| Motor Type | Permanent Split Capacitor |
| Max. RPM | 1,680 RPM |
| Housing Color | Gray |
| Overall Height | 15 in |
| Overall Depth | 18 in |
| Overall Width | 111 in |
| Control Type | Activation Switch |
| Housing Material | Aluminum |
| Sound Level @ 10 ft | 71 dBA |
| For Frame Opening Width | 9 ft |
| Heated/Not Heated | Not Heated |
| Nominal Voltage | 208/230V AC |
| Finish | Powder Coated |
| Max. Mounting Height Environment/Insect | 14 ft / 12 ft |
| Nameplate Voltage/Phase | 208/240V AC - 1 Ph |
| Heater Power Consumption | 3.36 kW |
| Mounting Height for Temperature Control | 14 ft |
| Maximum Air Velocity | 7,567 fpm |
| Air Curtain Type | Ambient Air |
| Motor Horsepower per Motor | 1 hp |
| Frequency | 60 Hz |
| Included | Motor Control Panel |
| Maximum Speed | 1,680 RPM |
| Mounting Height for Insect Control | 12 ft |
| Nominal Voltage - Phase | 208/230V AC - 1 Phase |
| Maximum Air Volume | 7,188 cfm |
| Ultraviolet Air Cleaning | No |
| Profile Type | Standard Profile |
| Power Cord Length | Not Available |
| Assembly | Not Available |
| Washdown | No |
| Sanitation Certified | No |
| Power Consumption | 3.36 kW |
| Overall Dimensions | 15 in H x 111 in W x 18 in D |
| Nameplate Voltage | 208/240V AC |
| Includes Mounting Fasteners | No |
| For Outdoor Use | Yes |
| Maximum Operating Temperature | Not Available |
| Mounting Hole Diameter | 1/2 in |
| Grille Material | Aluminum |
| Nozzle Width | 108 in |
| Drive Type | Direct Drive |
| Electrical Connection | Hardwired |
| HEPA Air Cleaning | No |
| Full Load Current | 19.5 A |
| Minimum Operating Temperature | Not Available |
| Series | IDC14 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
High Velocity Air Curtain, 111 In. W, BERNER, Mfr# IDC14-3108ABJ-G
$3488,99
Free shipping will be applied on orders over $50
Unhtd 15 In.H 111 In.W 18 In.D Alumin Air Curtain, For Frame Opening Width 9 ft, Mounting Height for Temperature Control 14 ft, Overall Depth 18 in, Overall Height 15 in, Overall Width 111 in, Profile Type Standard Profile, Heated/Not Heated Not Heated, Maximum Air Velocity 7,567 fpm, Mounting Height for Insect Control 12 ft, Maximum Air Volume 7,188 cfm, Nameplate Voltage 208/240V AC, Sound Level @ 10 ft 71 dBA, Housing Color Gray, Phase 1, Housing Material Aluminum
9999 in stock
Must order in multiples of 1
