| Property | Value |
|---|---|
| Item | Indexable Profiling End Mill |
| Series | VSM490-10 |
| Overall Length | 63.00mm |
| Depth of Cut | 10.00mm |
| Material - Machining | High Speed Steel |
| Cutting Direction | Right Hand |
| Insert Size | 100408 |
| Insert Shape | 90 Degrees Rectangle Mill 4 |
| Rake | -12.6 Degrees Radial, -8 Degrees Axial |
| ISO Number | VSM490D125Z14S40XN10 |
| Side Cutting Edge Angle | 90 Degrees |
| Insert Style | XNGU SRMM |
| Coolant Fed | Coolant Through |
| Compatible Hardware | Anti-Seize Lubricant, Coolant Screw Assembly - M20, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP9 |
| Cutting Application | Face Milling, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End |
| Insert Holding Type | Screw |
| Features | Best-in-Class Wall Finish in Axial Stepping-Down Jobs, Coarse, Lower Cutting Forces and Real Soft Cutting Action, Medium and Fine Pitch Cutter Density Available, Perfect Fit for Taper 40 Spindles and Driven Units, True 90 Degrees Roughing Tool with Embedded Finishing Capability in One Tool |
| ANSI Code | VSM490D125Z14S40XN10 |
| Max. Speed | 13,500 RPM |
| Arbor Dia. | 40.00mm |
| Hub Outside Dia. | 90.00mm |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |

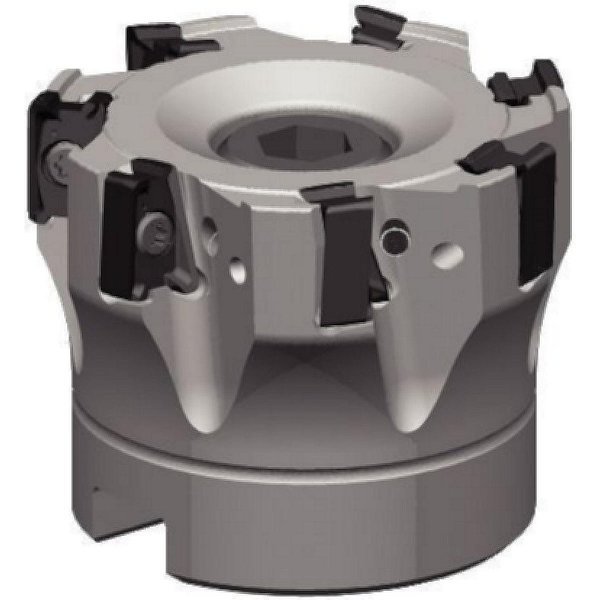

Indexable Face Mill, VSM490-10 Series, High Speed Steel, 10.00mm Depth of Cut, Widia, Mfr#: VSM490D125Z14S40XN10
$1508.99
Free shipping will be applied on orders over $50
Indexable Profiling End Mill, Depth of Cut 10.00mm, Overall Length 63.00mm, ANSI Code VSM490D125Z14S40XN10, Compatible Hardware Anti-Seize Lubricant, Coolant Screw Assembly - M20, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP9, Coolant Fed Coolant Through, Cutting Application Face Milling, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
