| Property | Value |
|---|---|
| Item | Indexable Insert Drill |
| Diameter | 1-1/2 |
| Ratio | 4xD |
| Mounting Style | Screw Clamp |
| Shank Dia. | 1-1/2 in |
| Overall Length | 314.05mm |
| Cutting Direction | Right Hand |
| Shank Length | 70.00mm |
| Number of Coolant Holes | 2 |
| Number of Inserts | 2 |
| Central Insert Style | TCF |
| ISO Number | TCF1938R4SLR150G |
| Spiral Direction | Right Hand |
| Min. Drill Dia. | 49.23mm |
| Shank Type - Machining | Round with Flat and Side Lock |
| Max. Drilling Depth | 198.66mm |
| Coolant Fed | Coolant Through |
| Toolholder Style | TCF |
| Drilling Application | 45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset |
| Flute Type | Slow Spiral |
| Flanged Shank | Yes |
| ANSI Code | TCF1938R4SLR150G |
| Depth x Dia. Ratio | 4xD |
| Flute Length | 235.10mm |
| Max. Drill Dia. | 50.23mm |
| Measurement System | Fractional Inch |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |

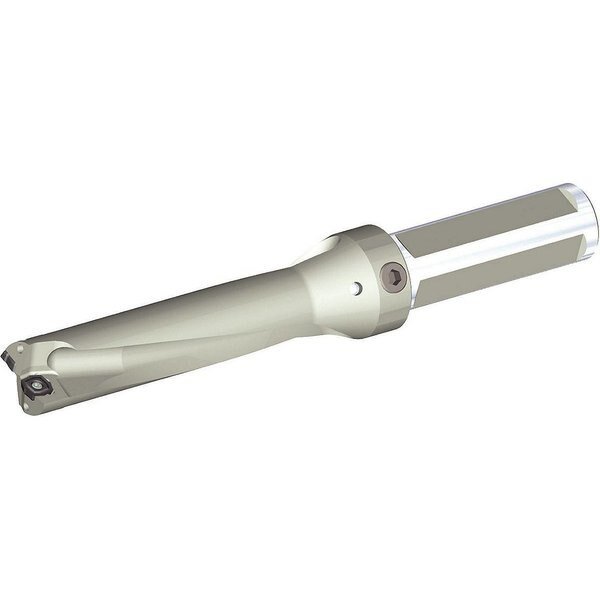

Indexable Insert Drill, 1-1/2", TCF, Widia, Mfr#: TCF1938R4SLR150G
$790.99
Free shipping will be applied on orders over $50
Indexable Insert Drill, 4xD, Max. Drilling Depth 198.66mm, TCF1938R4SLR150G, TCF, Coolant Through
9999 in stock
Subtotal:
$790.99
