| Property | Value |
|---|---|
| Item | Indexable Insert Drill |
| Diameter | 20.00mm |
| Ratio | 3xD |
| Shank Length | 50.00mm |
| Mounting Style | Screw Clamp |
| Shank Dia. | 20.00mm |
| Cutting Direction | Right Hand |
| Overall Length | 109.47mm |
| Min. Drill Dia. | 13.00mm |
| ISO Number | TCF130R3SLR20MA |
| Flute Type | Slow Spiral |
| Number of Coolant Holes | 2 |
| Flute Length | 55.10mm |
| Spiral Direction | Right Hand |
| Central Insert Style | TCF |
| Flanged Shank | Yes |
| Shank Type - Machining | Round with Flat and Side Lock |
| Number of Inserts | 2 |
| Max. Drilling Depth | 39.47mm |
| Toolholder Style | TCF |
| Drilling Application | 45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset |
| Depth x Dia. Ratio | 3xD |
| ANSI Code | TCF130R3SLR20MA |
| Coolant Fed | Coolant Through |
| Standards | ISO 9766 |
| Max. Drill Dia. | 13.50mm |
| Measurement System | Metric |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |

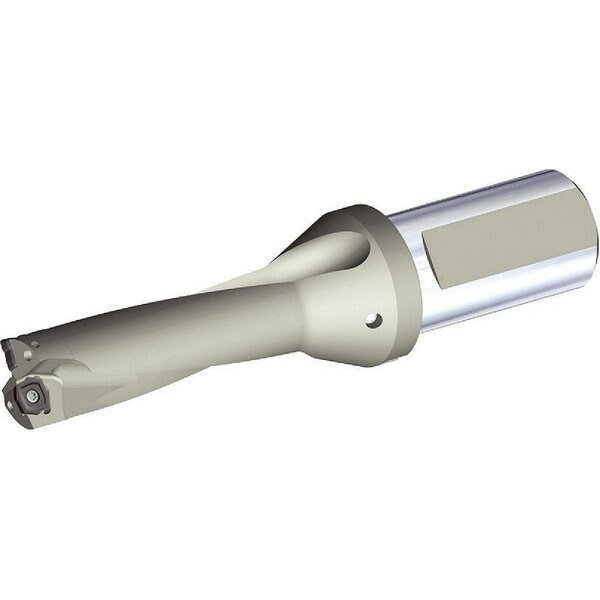

Indexable Insert Drill, 20.00mm, TCF, Widia, Mfr#: TCF130R3SLR20MA
$423.99
Free shipping will be applied on orders over $50
Indexable Insert Drill, 3xD, Max. Drilling Depth 39.47mm, TCF130R3SLR20MA, TCF, Coolant Through
9999 in stock
