| Item | Inflatable Purge Bladder |
| For Use With | EZ Zone Tape |
| Material | Polyurethane-Coated Nylon |
| Diameter | 28 in |
| Application | MIG/TIG Welding, Purging |

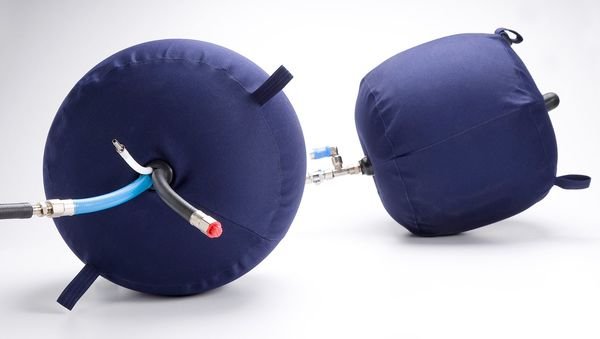

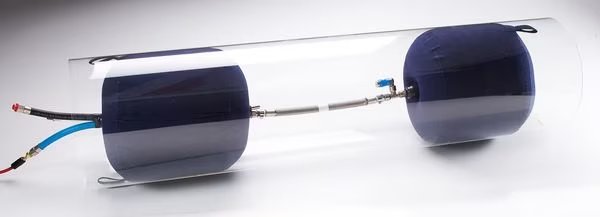

| Features | I-Purge is the reusable, economical and long term solution for pipe purging. I-Purge Inflatable Purge Bladder System is comprised of two inflatable lightweight polyurethane-coated nylon covered dams, connected by a braided tube. Ideal for purging multiple pipes of the same diameter and fabrication applications. Available in custom sizes upon request. Suitable for standard welding applications up to 392 Degrees F or 200 Degrees C. Adjust the flow meter to approximately 10-15 CFH (5-8 LPM) initally and upwards to 30 CFH (15 LPM) during operation. |
| Process | Purging Multiple Pipes |
| Resistance Properties | Spark Resistant |
| Standards | CE Approved |
| Maximum Temperature | 250 Degrees F |
| Bladder Design | Double Purge Bag System with High Heat Harness |
| Exterior Bag Material | Polyurethane-Coated Nylon |
| Gas Flow Rate (Maximum) | 30 cfh |
| Compatible Pipe Diameter (Maximum) | 28 in |
| Harness Length | 20 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
Inflatable Purge Bladder, 28 In Dia, AQUASOL, Mfr# ABLD-28
$873,99
Free shipping will be applied on orders over $50
Inflatable Purge Bladder, Compatible Pipe Diameter (Maximum) 28 in, Harness Length 20 in, Maximum Temperature 250 Degrees F, Gas Flow Rate (Maximum) 30 cfh, Features Connected By a Braided Tube, Reusable, Bladder Design Double Purge Bag System with High Heat Harness, Exterior Bag Material Polyurethane-Coated Nylon, Process Purging Multiple Pipes, Resistance Properties Spark Resistant, Standards CE Approved
9999 in stock
Must order in multiples of 1
Subtotal:
$873.99
