| Item | Infrared Window |
| Includes | Access Key, Drilling Template, Fixing Screws |
| NEMA Rating | 12, 4 |
| Use | Indoor, Outdoor |
| Optic Maximum Temperature | 1200 Degrees C (2192 Degrees F) |
| Voltage Range | Unlimited |
| Manufacturers Warranty Length | Limited Lifetime Warranty Against Manufacturer Defects |
| Viewing Aperture Size | 45mm dia |
| Viewing Aperture Area | 1590 sq mm |
| IP Rating | 65 |
| Body Material | Aluminum |
| Body Maximum Temperature | 200 Degrees C (302 Degrees F) |
| Special Features | Build in RFID,, Spring Loaded Cover |
| Components | Aperture, Cover, Frame, Gasket |
| Gasket Maximum Temperature | 200 Degrees C (392 Degrees F) |
| Window Thickness | 2.03 mm |
| Crystal Insert Size | 50mm dia |
| IR Window IP Rating | IP65 |
| IR Window NEMA Rating | NEMA 12, NEMA 4 |
| Country of Origin (subject to change) | United Kingdom |
| Package Quantity | 1 |

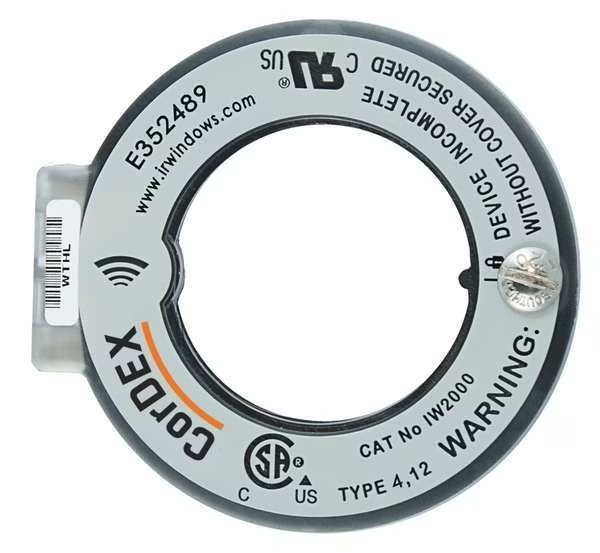

Infrared Window, CORDEX, Mfr# IW2000
$216,99
Free shipping will be applied on orders over $50
Infrared Window, Crystal Insert Size 50mm dia, Viewing Aperture Size 45mm dia, Viewing Aperture Area 1590 sq mm, Window Thickness 2.03 mm, NEMA Rating 12, 4, IP Rating 65, Gasket Maximum Temperature 200 Degrees C (392 Degrees F), Body Maximum Temperature 200 Degrees C (302 Degrees F), Optic Maximum Temperature 1200 Degrees C (2192 Degrees F), Voltage Range Unlimited, Components Aperture, Cover, Frame, Gasket, Body Material Aluminum, Includes Access Key, Drilling Template, Fixing Screws
9999 in stock
Must order in multiples of 1
