Item

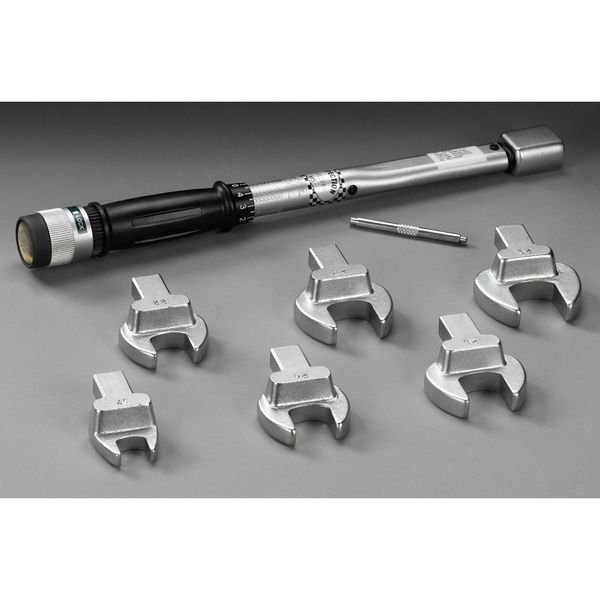

Interchangeable Head Torque Wrench Kit
Drive Size
17 mm, 22 mm, 24 mm, 26 mm, 27 mm, 29 mm
Includes

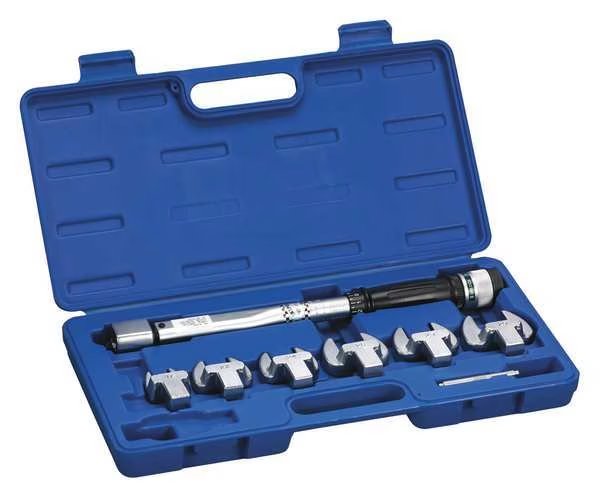

(6) Interchangeable Heads: 17, 22, 24, 26, 27, 29mm, Release Tool, Blow Molded Case
Accuracy
+/-4% CW/CCW @ 20 to 100% Of Full Scale
Torque Measurement Type
Foot-Pound, Newton-Meter
Rotation
Clockwise and Counterclockwise
Standards
ASME B107.14M, BSEN 26789, ISO 6789, DIN3122
Calibration Certificate Included
Yes
Primary Scale Range
7.4 ft-lb to 59 ft-lb
Secondary Scale Range
10 N-m to 80 N-m
Primary Scale Increments
0.5 ft-lb
Secondary Scale Increments
0.5 N-m
Visual/Audible Indicators
Audible Click
Torque Increments
0.5 N-m, 0.5 ft-lb
Extended Data Testing
Yes; BS EN 26789, ISO 6789, ASME B107.14M, DIN 3122
Secondary Scale Minimum Torque
10 N-m
Torque Range
10 N-m to 80 N-m, 7 ft-lb to 59 ft-lb
Counterclockwise Accuracy
+/-4%
Primary Scale Minimum Torque
7 ft-lb
Torque Adjustability
Adjustable
Primary Scale Maximum Torque
59 ft-lb
Secondary Scale Maximum Torque
80 N-m
Country of Origin (subject to change)
Taiwan, Province of China
