| Property | Value |
|---|---|
| Item - Jaw Coupling Hubs | Jaw Coupling Hub |
| Size - Jaw Couplings | L150 |
| Bore Dia. | 1 5/8 in |
| Keyway Size Type | 3/8 in x 3/16 in |
| Material - Hubs | Aluminum |
| Outside Dia. | 3.75 in |
| Assembled Coupling Length | 4.5 in |
| Size | L150 |
| Keyway Size | 3/8 |
| Item | Jaw Coupling Hub |
| Overall Length | 4.5 in |
| Material | Aluminum |
| Coupling Size | L150 |
| Length through Bore | 1.8 in |
| Jaw Profile | Straight |
| Shaft Locking Type | Set Screw |
| Keyway Width | 3/8 in |
| Hub Projection | 1 3/4 in |
| Compatible Center Element Manufacturer Part Number | L150H, L150N, L150U |
| Bore Type | Round Bore with Keyway |
| Maximum Bore Diameter | 1 7/8 in |
| Bore Tolerance | +0.0005/+0.0015 in |
| Resistance Properties | Chemical Resistant, Oil Resistant |
| Maximum Speed | 5,000 RPM |
| Coupling Overall Length | 4 1/2 in |
| Hub Diameter | 3 3/4 in |
| Horsepower @ 100 RPM | 2 hp (Buna-N Spider), 3 hp (Urethane Spider), 5.9 hp (Hytrel Spider) |
| Number of Locking Screws | 1 |
| Hub Material | Aluminum |
| Maximum Torque for Spider Types | 1240 in-lb (Buna-N), 1860 in-lb (Urethane), 3708 in-lb (Hytrel) |
| Weight | 2 lb |
| Bore Diameter | 1 5/8 in |
| Keyway Depth | 3/16 in |
| Screw Thread Size | 3/8 |
| Standards | ISO Certified |
| System of Measurement | Inch |
| Maximum Operating Temperature | 250 Degrees F |
| Minimum Operating Temperature | -31 Degrees F |
| Outside Diameter | 3 3/4 in |
| Included Screws | Set Screw |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

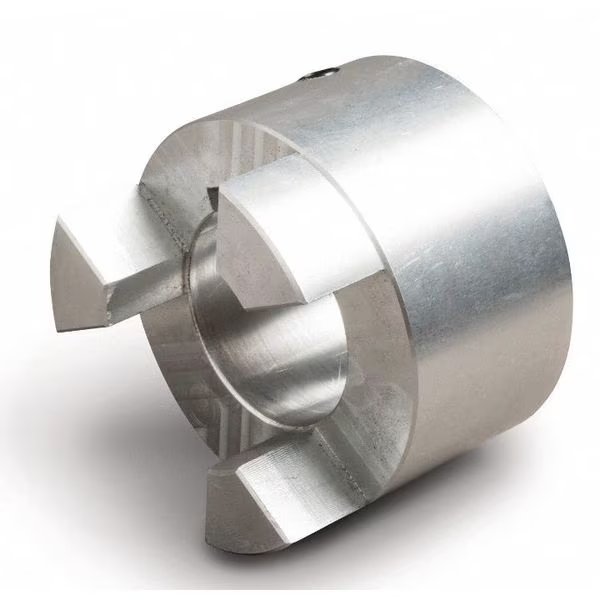

L-Jaw Coupling Hub, 1-5/8 in. Bore Dia, Alum, Tb Woods, Mfr#: AL150158
$54.39
Free shipping will be applied on orders over $50
Jaw Coupling Hub, Coupling Size L150, Outside Diameter 3 3/4 in, Coupling Overall Length 4 1/2 in, System of Measurement Inch, Hub Material Aluminum, Maximum Speed 5,000 RPM, Horsepower @ 100 RPM 2 hp (Buna-N Spider), 3 hp (Urethane Spider), 5.9 hp (Hytrel Spider), Keyway Depth 3/16 in, Keyway Width 3/8 in, Bore Diameter 1 5/8 in, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Jaw Profile Straight, Compatible Center Element Manufacturer Part Number L150H, L150N, L150U
9999 in stock
