| Property | Value |
|---|---|
| Item | Joystick |
| Size | 30 mm |
| Number of Directions | 2 |
| Contact Form | Not Included |
| Contact Rating | 10A @ 600V AC |
| Joystick Material | Metal |
| Action | Maintained |
| NEMA Rating | 13, 4 |
| Latching / Non-Latching | Non-Latching |
| Direction of Operation | Vertical |
| Bezel | Metal |
| IP Rating | IP66 |
| Standards | China RoHS, EU RoHS, REACH, WEEE |
| NEMA Contact Rating Designation | Not Applicable |
| Ambient Air Temperature For Operation | -25-70ΓΒ°C |
| Device Presentation | basic element |
| Shape Of Signaling Unit Head | octagonal |
| Nema Degree Of Protection | NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 |
| Mounting Diameter | 30 mm |
| Product Or Component Type | head for joystick controller |
| Operator Profile | 80 mm long operating shaft |
| Overvoltage Category | II IEC 61140 |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Device Short Name | 9001K |
| Ambient Air Temperature For Storage | -40-70ΓΒ°C |
| Operating Position | any position |
| Contacts Type And Composition | without contact block |
| Bezel Material | Metal |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Product Certifications | NEMA || UL 508 |
| Type Of Operator | stay put |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Protective Treatment | TC |

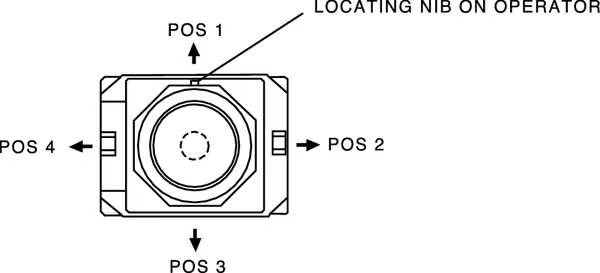

| Operator Direction Information | 2 directions |
| Shaft Length | 3.15 in |
| AC Contact Rating | Not Applicable |
| Series | 9001K |
| Switch Action | Maintained |
| Manufacturer Warranty Length | 18 mo |
| Number of Positions | 2 |
| NEMA Enclosure Rating | 1, 12, 13, 2, 3, 3R, 4 |
| Panel Cutout Diameter | 30 mm |
| DC Contact Rating | Not Applicable |
| Latch Type | Non-Latching |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
Joystick Operator, 30mm, 2 Dir, Maintained, Schneider Electric, Mfr#: 9001K73
$244.99
Free shipping will be applied on orders over $50
Joystick, 30 mm, Number of Directions 2, Not Included Contact Form, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation Not Applicable, Joystick Material Metal, Bezel Metal, Non-Latching, Vertical Direction of Operation, Action Maintained, NEMA Rating 13, 4, IP Rating IP66, Standards China RoHS, EU RoHS, REACH, WEEE
9999 in stock
